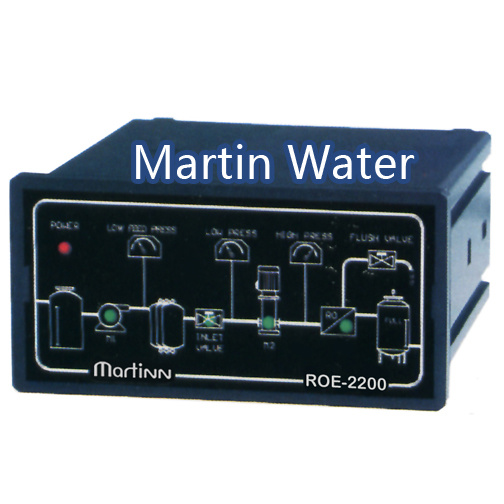

MT-ROE-2200 Reverse Osmosis Controller:
Features:
Panel mount reverse osmosis controller
RO collecting: Water shortage, raw water low pressure, high pressure, product water tank high level.
RO controlling: Raw water pump, high pressure pump, RO high pressure, inlet valve, auto-flush valve.
Simulate Function, Isolated 4-20mA current output
Relay control output. On
Automatic temperature compensation
Display and/or Control: μ S andº C
Technical Parameter:
Sensor input range: Conductivity: 0~20, 0~200, 0~2000μ S/cm
Temperature: 0~50º C
Accuracy: 1.5% (FS)
Stability: ± 2 × 10¯ ³ (FS) / 24h
Display: Conductivity: 4 digit LCD
Temperature: 3 digit LCD
Temperature comp.: Automatic compensation standard Temperature: 25º CM
Media Temperature: 5~50º C
Electrode: 1.0cm¯ ¹ Plastic platinum gold electrode, 1/2" thread
Cable length: 5m or others(5~30m)
Current output: Isolated 4-20mA current output
Control output: Relay output, on
Power supply: AC 220V ± 10% 50Hz
Environmental conditions: Temperature: 0~50º C; Humidity: ≤ 85%RH
Dimensions: 96 × 96 × 130mm (height × Width × Depth)
Panel cut-out 92X92mm
Installation Cut-out Fit-In
Detailed Pictures
