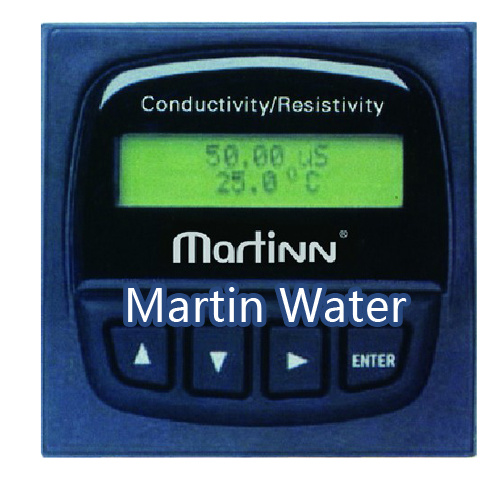

in-Line Conductivity Resisitivity Meter Water Treatment (MT-ER-300)

MT-ER-300 Resistivity Meter

Features:
On-line panel mount resisitivity monitor.
Display in MΩ .
Simulate Function, Non-isolated 4-20mA current output
Automatic temperature compensation


Technical Parameter:
Sensor input range: 0~18.2MΩ . Cm
Accuracy: 1.5% (FS)
Stability: ± 2 × 10-³ (FS) / 24h
Display: Back light 3.5-bit LCD
Temperature comp.: Automatic thermistor temp compensation, standard; Temperature: 25
Electrode: 0.05cm-¹ Sanitary grade stainless steel 316L electrode, 1/2" thread
Cable length: 10m or others(5~30m)
Control output: Relay output, Lo, on, off
Power supply: AC 220V ± 10% 50Hz
Environmental conditions: Temperature: 0~50; Humidity: ≤ 85%RH
Dimensions: 48 × 96 × 100mm (height × Width × Depth)
Panel cut-out 45X91mm
Installation Cut-out Fit-In

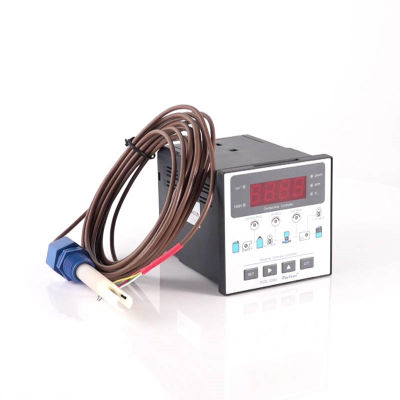

Detailed Pictures
