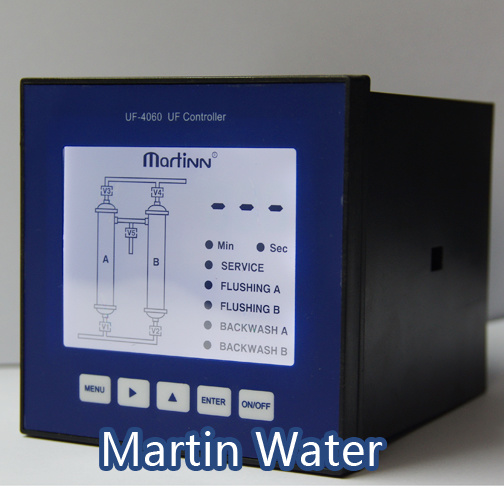

MT-UF-4060 UF Controller:
Features:
Panel mount UF controller
UF controlling: Service, Forward Flushing, Back Washing
Relay control output. On
Friendly Interface Designing
Technical Parameter:
Power voltage: AC 220V± 15% 50Hz
Temperature: 0~50º C;
Humidity: ≤ 85%RH
Load capacity of output contact: 5A/250V AC
The magnetic valve should be driven through intermediate relay
Medium temperature: 5~50º C
Display mode: 3 1/2-digit LCD digital display
Outline dimensions: 96× 96× 110mm (height× Width× Depth)
Meter board hole: 92× 92mm (height× Width)
Installation Cut-out Fit-In
Application:
UF system control
Residential water process control
Detailed Pictures
