Flow Meter (MT-K-600) For Ultrapure Application

Flow Meter (MT-K-600) For Ultrapure Application

Operational function:
Illustrated as drawing 1, when the liquid pass through main hole's plate, the pressure difference between front side and back side happens, there is a respondent function relation between the pressure difference and flow speed. Installing a small rotor flow meter on the in-outlet of branch, I. E. To make that the flow volume through small rotor flow meter is same to the volume through main pipe, therefore the flow volume's data in main pipe can be read through buoy position and scale on small rotor flow meter. The cut-off valve installed between measure pipe and indicator can make the flow meter's take-down or repair conveniently when the main pipe is being in normal working situation.

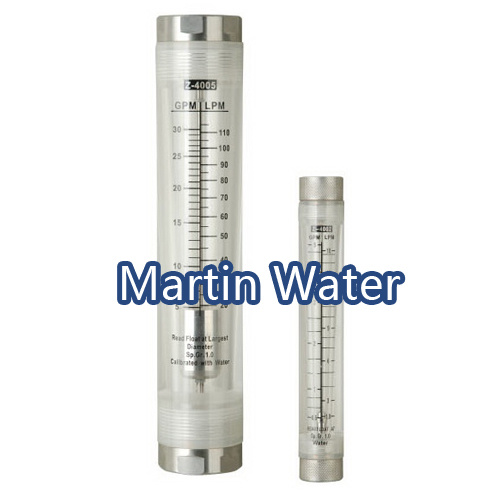

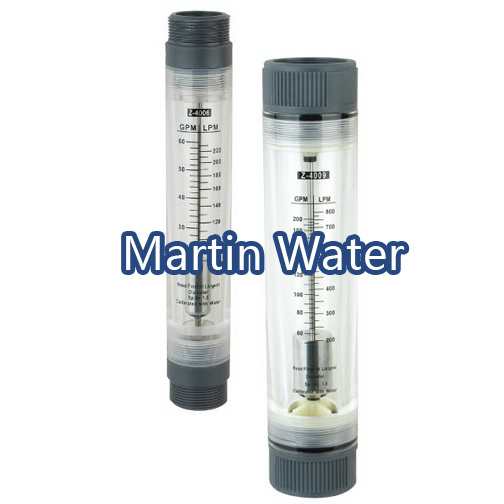

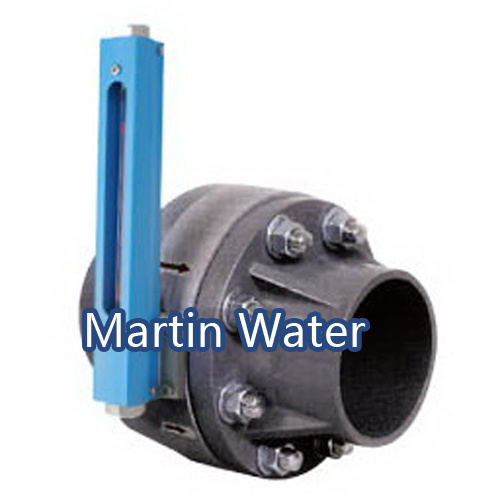

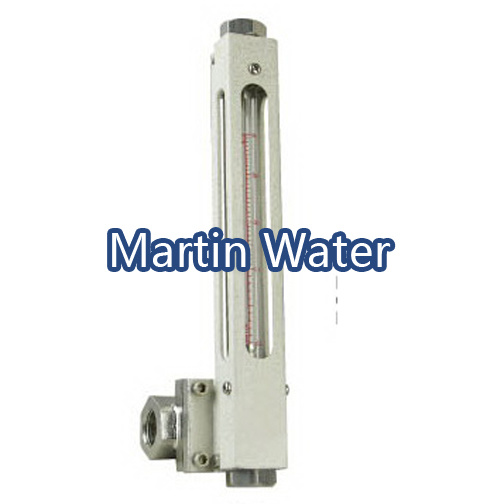

Detailed Pictures
