Flow Meter (MT-Z-500 Inline)

Main Application:
Water, Wastewater
Certification:
CE
Transport Package:
Carton
Specification:
MT-Z-500 Series InLine
Trademark:
MT
Origin:
China

Quantity:
Availability:





Inquire Add to Basket

Water Treatment Water Purifier Flow Meter (MT-Z-500 Inline)

Product Description

Flow Meter (MT-Z-500 Inline)

The major parts ofZ-500 series In-line flow meter: Material of taper tube is polycarbonate(PC), the connectors are polyvinyl chloride(PVC), the float material is stainless steel or ABS. Can be acid proof and alkali-resisting. If need a panel mount flow meter with good accuracy and repeatability, choose the "W" elbow series equipped with 90° Panel mount adapters.

Max, working pressure: 150psi
Temperature limit: 60° C
Accuracy: ± 5%
0-ring material: EPDM

Model	Water		Pipe	Male	Female
	(GPM)	(LPM)	Connection	Thread	Thread
MT-Z-5008	0.1-1	0.5-4	D20	1/2"NPT	/
	0.2-2	1-7
	0.5-5	1.8-18
MT-Z-5008C	0.1-1	0.5-4	D20	1/2"NPT	1/2"NPT
	0.2-2	1-7
	0.5-5	1.8-18
MT-Z-5015	0.25-2.5	1-10	D20	ZG3/4"	1/2 "NPT
	0.5-5	1.8-18
	0.8-8	3-30
MT-Z-5025	0.8-8	3-30	D32	3/4"NPT	3/4"NPT
	1-10	4-40
MT-Z-5032	1.2-12	5-50	D40	1"NPT	1"NPT
	2-20	8-80
	2.5-25	10-100
MT-Z-5050	2.5-25	10-100	D63	2"NPT	2"NPT
	5-45	20-180
	7-70	25-250
MT-Z-5065	25-110	80-400	D75	2 1 /₂"NPT	2 1 /₂"NPT
	40-160	150-650
	50-250	200-1000
MT-Z-50100	12~60(m3/h) 18~90(m3/h) 20~120(m3/h)		D110	Centre hole distance 0180mm
MT-Z-50125	25~150(m3/h) 30~180(m3/h)		D110	Centre hole distance 0210mm

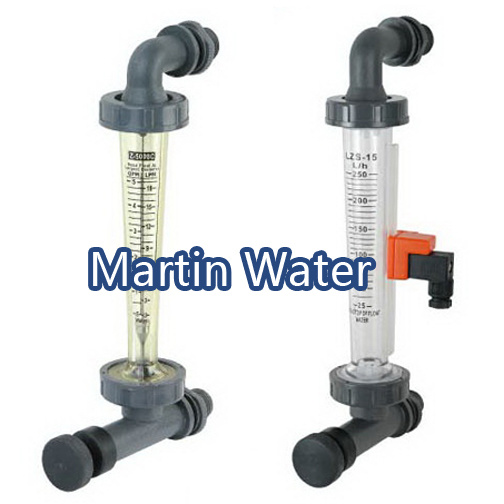

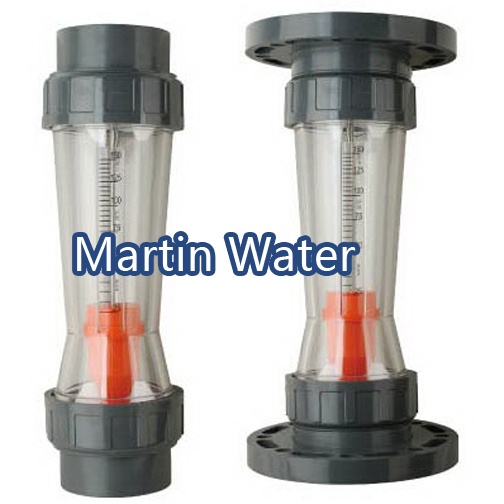

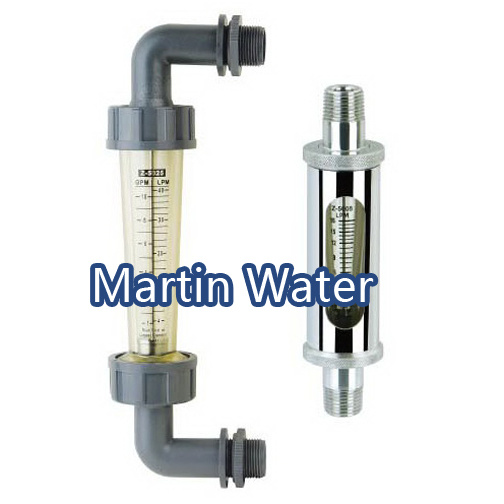

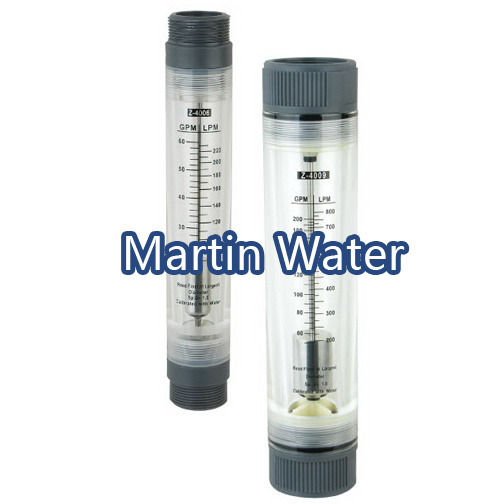

Detailed Pictures
Flow Meter (MT-Z-500 Inline)
