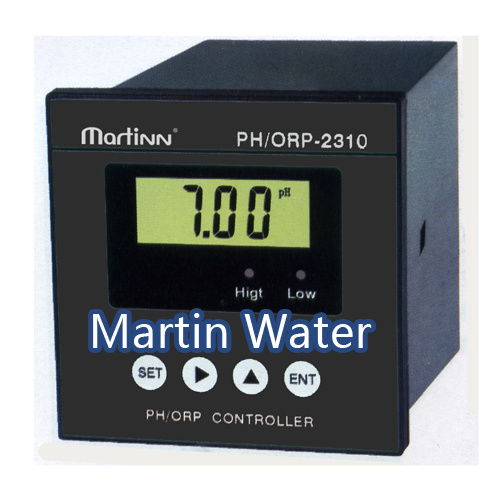

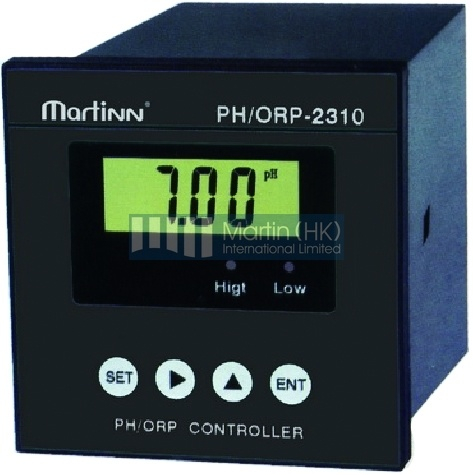

MT-pH/ORP-2310 ORP Controller
Features:
On-line panel mount pH/ORP controller.
Display in pH, mV
Simulate Function, Isolated 4-20mA current output
Relay control output, Hi, Lo, on, off
Automatic temperature compensation
Display and/or Control: PH or ORP
Technical Parameter:
Sensor input range: PH: 0.00~14.00pH
ORP: -999~999mV
Accuracy: PH: +/- 0.1pH
ORP: +/-2mV
Display: Back light 3.5-bit LCD
Temperature comp.: Automatic MTC temp compensation 0~60º C
Calibration: Automatic 3 point calibration
Electrode: Plastic-shell dual combination electrode, 3/4" thread
Cable length: 10m or others(5~30m)
Current output: Isolated 4-20mA current output
Control output: Relay control output, Hi, Lo, on, off
Power supply: AC 220V ± 10% 50Hz
Environmental conditions: Temperature: 0~50º C; Humidity: ≤ 85%RH
Dimensions: 96 × 96 × 130mm (height × Width × Depth)
Panel cut-out 92X92mm
Installation Cut-out Fit-In
Detailed Pictures
