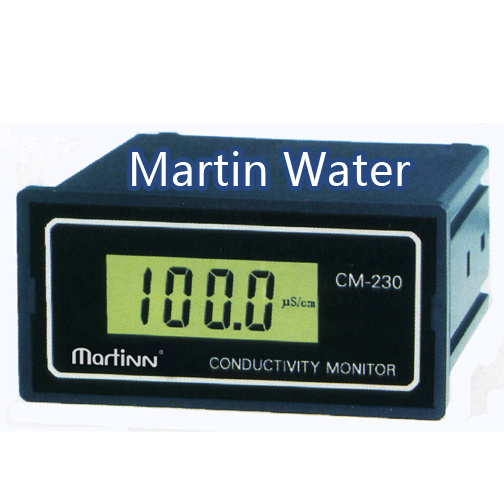

Conductivity Meter (MT-CM-230) for water treatment system Features:
On-line panel mount conductivity monitor
Display in μ S and mS
Automatic temperature compensation
Technical Parameter:
Sensor input range: 0~20, 0~200, 0~2000μ S/cm
0~20mS/cm
Accuracy: 1.5% (FS)
Display: Back light 3.5-bit LCD
Temperature comp: Automatic thermistor temp compensation, standard temperature: 25C
Electrode: 1.0cm; Plastic platinum gold electrode, 1/2" thread
Cable length: 5m or others(5~30m)
Current output: Non-isolated 4-20mA current output
Power supply: AC 220V ± 10% 50Hz
Environmental conditions: Temperature: 0~50C; Humidity: <=85%RH
Dimensions: 48 X96X100mm (heightXwidthXdepth)
Panel cut-out: 45X91mm
Installation: Cut-out Fit-In

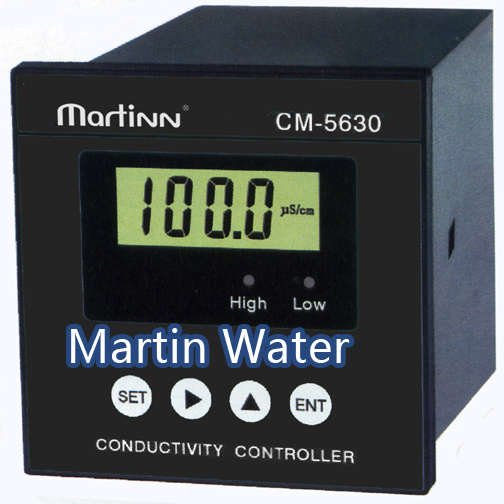

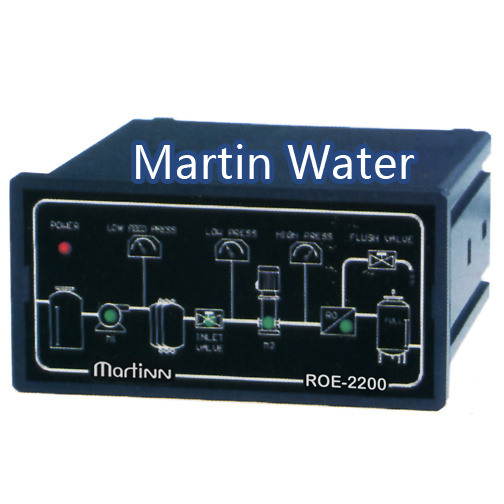

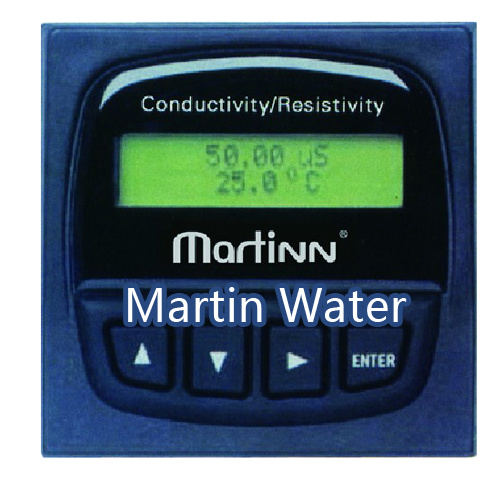

Detailed Pictures
