Martin Good Quality Panel Flow Meter (MT-Z-500T series)

You are here: Home » Products » Flow Meters & Measurements » Martin Good Quality Panel Flow Meter (MT-Z-500T series)

Martin Good Quality Panel Flow Meter (MT-Z-500T series)

After-sales Service:
on Line
Warranty:
One Year
Accuracy:
+/-5%
Main Application:
Water, Wastewater
Size:
DN10-50
Sensor:
Tube/Flange

Quantity:
Availability:





Inquire Add to Basket

Water Treatment Water Purifier Martin Good Quality Panel Flow Meter (MT-Z-500T series)

Product Description

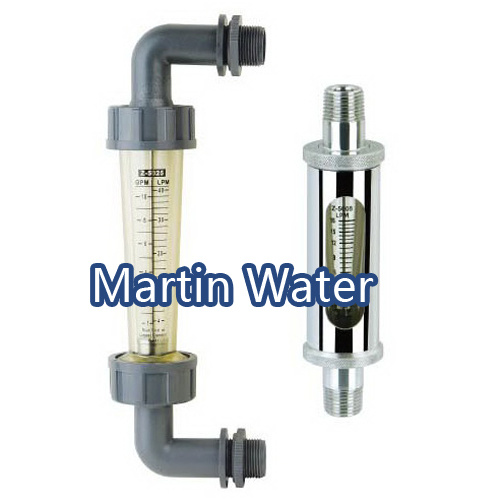

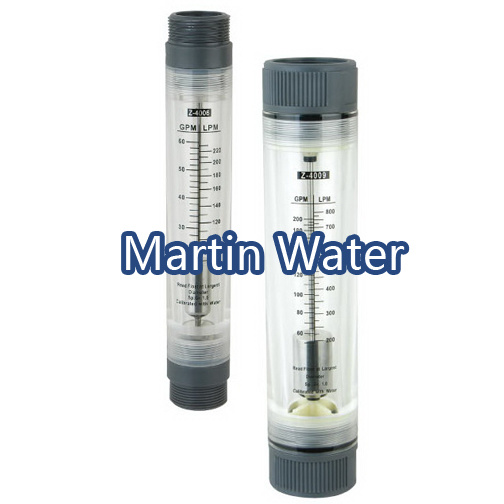

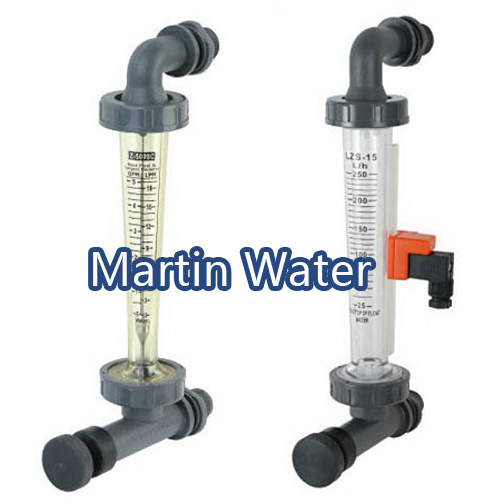

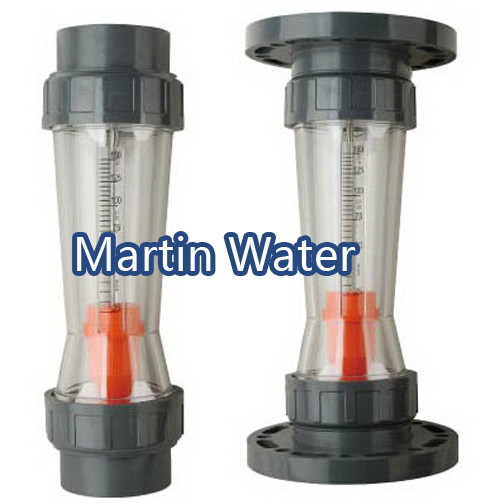

Martin good quality panel Flow Meter (MT-Z-500T series)

The series of Z-500T flow meter is made of PC (PSU is optional), the float material is 304SS, the connector material is PVC. The adjuster of flow meter can adjust the flow volume; There are characteristics such as good transparence, easy to read and easy installation.

Model	Water LPM	Air (m3/h)	Male Thread	Accuracy	Working pressure	Weight (Kg)
MT-Z-5008T	0.5-4	1-7	1/2"NPT	±4%	<0.6MPa	0.2
	1-7	2-12
	1.8-18	3-30
MT-Z-5008CT	0.5-4	1-7	1/2"NPT
MT-Z-5008CT	1-7	2-12	1/2"NPT
	0.25-2.5	1-10
MT-Z-5015T	0.5-5	1.8-18	1/2"NPT
MT-Z-5015T	0.8-8	3-30	1/2"NPT
MT-Z5015CT	10-100	16-160 L/H
MT-Z5015CT	25-250	40-400 L/H

Detailed Pictures
Martin Good Quality Panel Flow Meter (MT-Z-500T series)
