Electromagnetic Flow Meter (MT-KF700) for Water Treatment System

You are here: Home » Products » Flow Meters & Measurements » Electromagnetic Flow Meter (MT-KF700) for Water Treatment System

Electromagnetic Flow Meter (MT-KF700) for Water Treatment System

After-sales Service:
on Line
Warranty:
One Year
Accuracy:
+/-5%
Main Application:
Water, Wastewater
Size:
DN50-100
Sensor:
Plug-in

Quantity:
Availability:





Inquire Add to Basket

Water Treatment Water Purifier Electromagnetic Flow Meter (MT-KF700) for Water Treatment System

Product Description

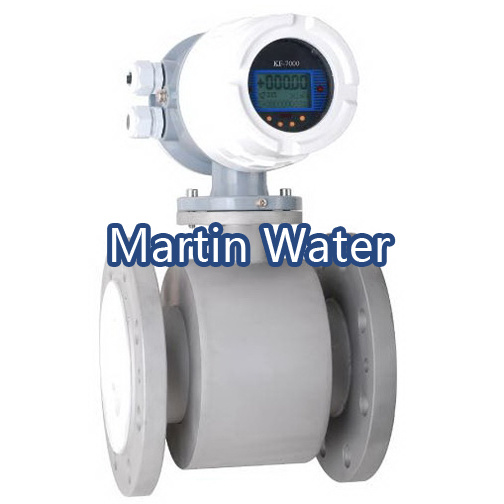

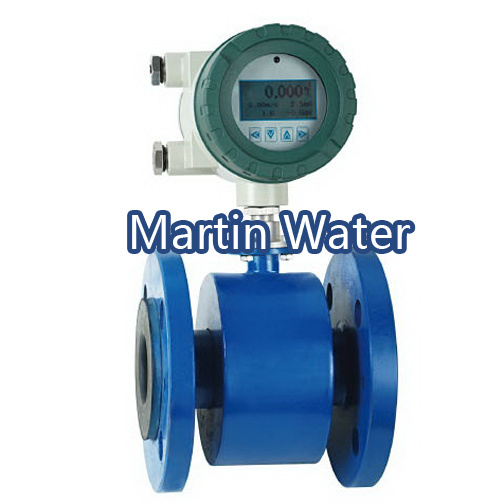

Electromagnetic Flow Meter (MT-KF700) for water treatment system

MT-KF700 electromagnetic flow meter is an inductive apparatus to measure the flow volume of electric medium in the tube. The flow meter composes of sensor and converter, the flow meter design is adopted of SCM built-in technology to realize digital inciting magnetism the SCM connects CAN bus-mastering in the electromagnetic flow meter at the same to time. The electromagnetic flow meter can not only be read straightly but also output 4_20MA current signal for purpose of memory, adjustment and control. The flow meter is extensively used in industry technology and administration department such as chemical industry, environmental protection, metallurgy, medicine, paper making and water supply etc

DN	Minimum flow volume selection	Usual full range flow volume selection ( m3/h )
10	0.1	0.16, 0.2, 0.25, 0.3, 0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5
15	0.2	0.4,0.5,0.6, 0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0
20	0.35	0.6,0.8,1.0, 1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0
25	0.55	1.0,1.2,1.6, 2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0
32	1	1.6,2.0,2.5, 3.0,4.0,5.0,6.0,8.0,10.0,12.16,20,25
40	1.5	2.5, 3.0, 4.0, 5.0, 6.0, 8.0,10.0,12,16,20,25,30,40
50	2.5	4.0, 5.0, 6.0, 8.0, 10, 12,16,20,25,30,40,50,60,70
65	4	6.0,8.0,10, 12,16,20,25,30,40,50,60,80,100,120
80	5.5	10,12,16, 20,25,30,40,50,60,80,100,120,160
100	8.5	16,20,25, 30,40,50,60,80,100,120,160,200,250
125	14	25,30,40, 50,60,80,100,120,160,200,250,300,400
150	20	40,50,60, 80,100,120,160,200,250,300,400,500,600
200	35	60,80,100, 120,160,200,250,300,400,500,600,800,1000
250	55	100,120,160, 200,250,300,400,500,600,800,1000,1200,1600
300	80	160,200,250, 300,400,500,600,800,1000,1200,1600,2000,2500
350	105	200,250,300, 400,500,600,800,1000,1200,1600,2000,2500,3000
400	135	250,300,400, 500,600,800,1000,1200,1600,2000,2500,3000,4000
450	175	300,400,500, 600,800,1000,1200,1600,2000,2500,3000,4000,5000
500	215	400,500,600, 800,1000,1200,1600,2000,2500,3000,4000,5000,6000
600	305	600,800, 1000,1200,1600,2000,2500,3000,4000,5000,6000,10000
700	415	800,1000,1200, 1600,2000,2500,3000,4000,5000,6000,10000,12000
800	545	1000,1200,1600, 2000,2500,3000,4000,5000,6000,10000,12000,16000
900	690	1200,1600, 2000,2500,3000,4000,5000,6000,8000,10000,12000,16000
1000	850	1600,2000, 2500,3000,4000,5000,6000,10000,12000,16000,20000

Detailed Pictures
Electromagnetic Flow Meter (MT-KF700) for Water Treatment System
