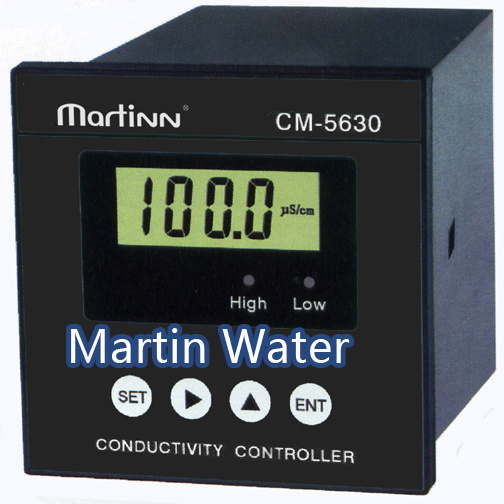

MT-CM-5630 Conductivity Controller
Features:
On-line panel mount conductivity controller
Display in μ S, ppm and mS
Simulate Function, Isolated 4-20mA current output
Relay control output. Hi, Lo, On, Off
Automatic programmable temperature compensation
Display and/or Control: μ S, mS, ppm or C
Technical Parameter:
Sensor input range: 0~20, 0~200, 0~2000μ S/cm
0~20, 0~200, 0~2000ppm
0~20mS/cm
Accuracy: 1.5% FS
Stability: ± 2 × 10-³ (FS) / 24h
Display: Back light 3.5-bit LCD
Temperature comp.: Automatic programmable compensation standard Temperature: 25C
Electrode: 1.0cm-¹ Plastic platinum gold electrode, 1/2" thread
Cable length: 5m or others(5~30m)
Current output: Isolated 4-20mA current output
Control output: Relay output, Hi, Lo, on, off
Power supply: AC 220V ± 10% 50Hz
Environmental conditions: Temperature: 0~50C; Humidity: ≤ 85%RH
Dimensions: 96 × 96 × 130mm (height × Width × Depth)
Panel cut-out 92X92mm
Installation Cut-out Fit-In
Detailed Pictures
