1.High quality components designed;
2.Feature with simple user-friendly controls,easy access for maintenance and installaton;
3.100%factory & industry tested;
4.Years of trouble free service offered;
5.CE Certified.
LCRO Series

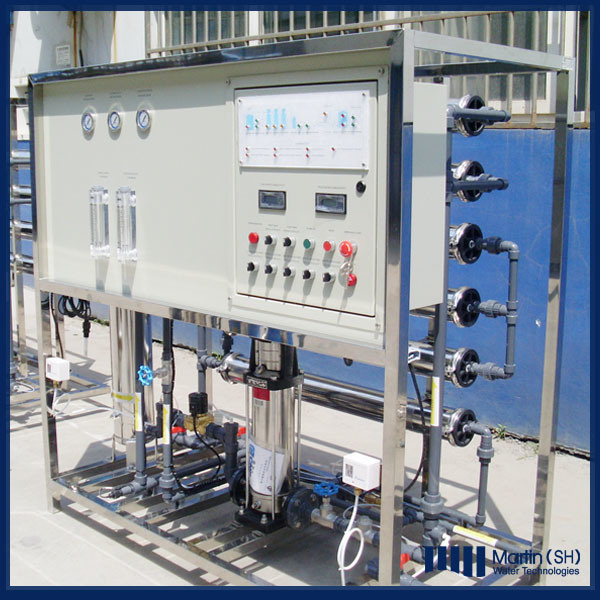

Martin LCRO Series Reverse Osmosis Systems cover a wide range production from 800 to 18000GPD with easy installation and low maintenance. System is high quality components designed and 100% factory & industry tested. Years of trouble free service offered.
Standard Features:
1. Stainless Steel 304 Frame
2. Thin Film Composite Membranes
3. Stainless Steel 304 RO Vessels Seamless
4. Vertical High Pressure Pumps
5. PLC Control
6. Power On/Off Switch
7. 5 Microns Pre-filter
8. Product Water Flow Meter
9. Concentrate Water Flow Meter
10. High Pressure Pump Inlet Pressure Gauge
11. High Pressure Pump outlet Pressure Gauge LCRO800-LCRO3000
12. Concentrate Outlet Pressure Gauge
13. Low Pressure Switch
14. High Pressure Switch
15. Heavy-duty PVC Piping
16. Level Control On/Off
17. Automatic Flush
18. Low Pressure Shut-Off
NOTE:
110V/60Hz and 220V/50Hz available.
Standard Poly-Wood Package
Remark: All weights and dimensions are approximate. Other custom designs are available upon request
Product Code | Capacity (Minimum) | Membrane Quantity | Inlet Pipe | Motor | DIMENSION LxWxH (CM) | Ship Weight (KG) |
LCRO-800 | 800 GPD (125L/hr) | 4021X1 | 3/4" | 0.5 HP | 70X70X165 | 90 |
LCRO-1500 | 1500 GPD (250L/hr) | 4040X1 | 3/4" | 1.0 HP | 70X70X165 | 120 |
LCRO-3000 | 3000 GPD (500L/hr) | 4040X2 | 3/4" | 1.0 HP | 70X70X165 | 125 |
LCRO-4500 | 4500 GPD (750L/hr) | 4040X3 | 1" | 2.0 HP | 160X80X170 | 205 |
LCRO-6000 | 6000 GPD (1000L/hr) | 4040X4 | 1" | 2.0 HP | 160X80X170 | 210 |
LCRO-7500 | 7500 GPD (1250L/hr) | 4040X5 | 1" | 3.0 HP | 160X80X170 | 215 |
LCRO-9000 | 9000 GPD (1500L/hr) | 4040X6 | 1" | 3.0 HP | 160X80X170 | 230 |
LCRO-12000 | 12000 GPD (2000L/hr) | 4040X8 | 1-1/2" | 3.0 HP | 160X100X170 | 255 |
LCRO-18000 | 18000 GPD (3000L/hr) | 4040X12 | 1-1/2" | 4.0 HP | 260X100X170 | 310 |
