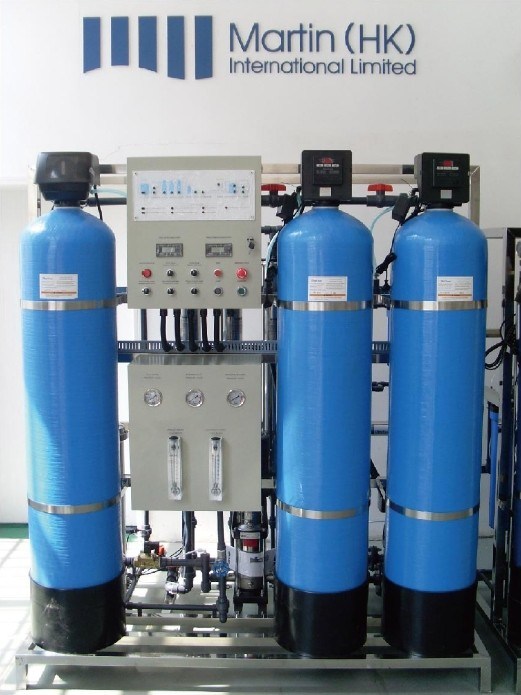

2 Tons/Hour Reverse Osmosis Water Treatment Plant Martin (HK) International Limited provides customized designs as well in systems in a big range and including all pretreatment and post-treatment equipment. Our engineers are able to design the right products to fit your application and the best solution for your requirements.

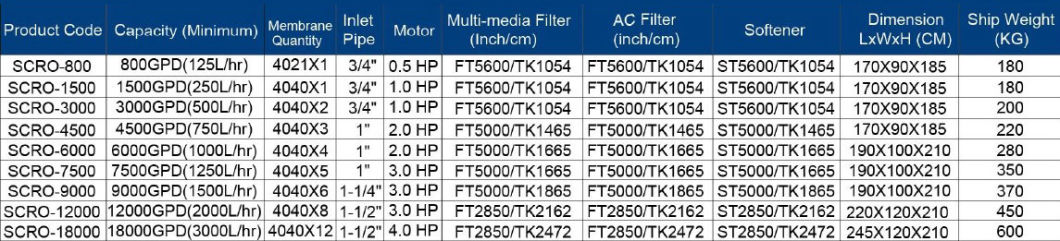

Martin SCRO Series Reverse Osmosis Systems cover a wide range production from 800 to 18000GPD with easy installation and low maintenance. System is high quality components designed and 100% factory & industry tested. Years of trouble free service offered.
Main Features
1) Stainless steel 304 frame
2) Sand filter FRP tank with mechanical control valve
3) Carbon filter FRP tank with mechanical control valve
4) Water softener FRP tank with mechanical control valve
5) Thin film composite membrane
6) Stainless steel 304 RO vessels seamless
7) Horizontal feed pump
8) Vertical high pressure pump
9) PLC controller
10) Power on/off switch
11) 5 Microns pre-filter
12) Product water flow meter
13) Concentrate water flow meter
14) High pressure pump inlet pressure gauge
15) High pressure pump outlet pressure gauge
16) Concentrate outlet pressure gauge
17) Low pressure switch
18) High pressure switch
19) Heavy-duty PVC piping
20) Level control on/off
21) Automatic flush
22) Low pressure shut-off
23) Optional UV sterilizer, ozone and SS jacket
Note
110V/60Hz and 220V/50Hz are available. Standard Poly-Wood Package
Remark All weights and dimensions are approximate. Other custom designs are available upon request.

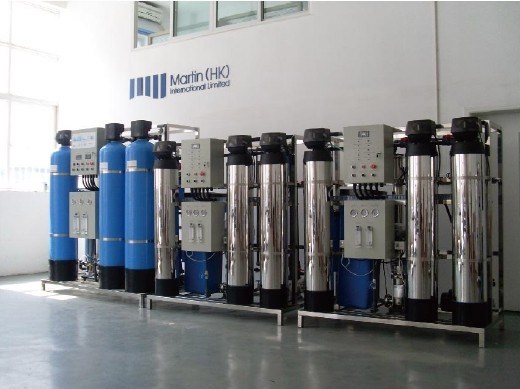

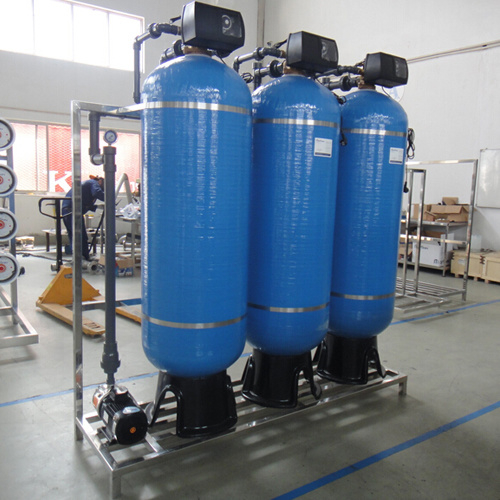

Detailed photos
