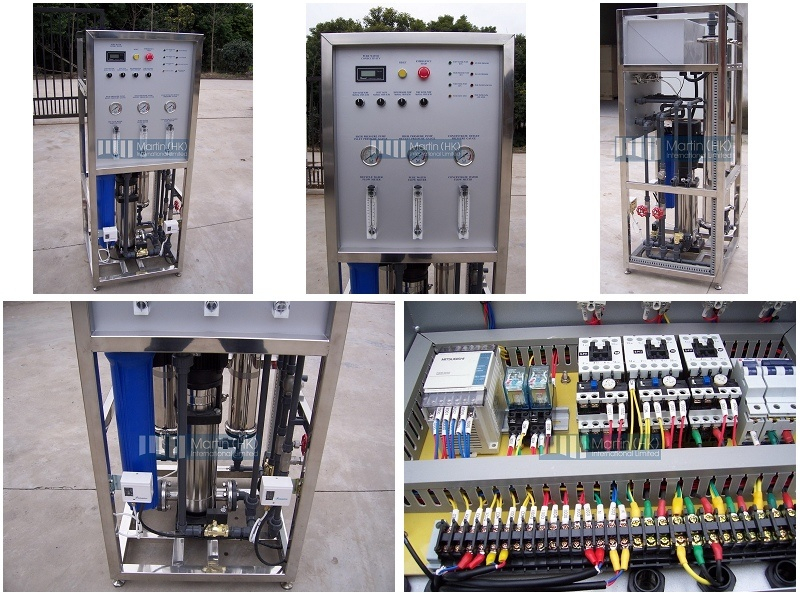

LCRO Series cover wide range production from 800 to 12000GPD with easy installation and low maintenance. System is high quality components designed and 100% factory & industry tested. Featured as 5-stage RO system only. Years of trouble free service offered.
Standard Features:
Stainless Steel Frame
Thin Film Composite Membranes
Stainless Steel RO Vessels
High Pressure Pumps
PLC Control
Power On/Off Switch
5 Microns Pre-filter
Product Water Flow Meter
Vertical High Pressure Gauge
Inlet Low Pressure Gauge
Low Pressure Switch
Heavy-duty PVC Piping
Level Control On/Off
Automatic Flush
Low Pressure Shut-Off
NOTE: Pre-Treatment is required. 110V/60Hz and 220V/50Hz available. Standard Wooden Package
Product Code |
Capacity (Minimum) | Membrane
Quantity | Inlet
Pipe |
Motor | DIMENSION
LxWxH (CM) | Ship Weight
(KG) |
| LCRO-800 | 800 GPD (125L/hr) | 4021X1 | 3/4" | 0.5 HP | 70X70X165 | 90 |
| LCRO-1500 | 1500 GPD (250L/hr) | 4040X1 | 3/4" | 1.0 HP | 70X70X165 | 120 |
| LCRO-3000 | 3000 GPD (500L/hr) | 4040X2 | 3/4" | 1.0 HP | 70X70X165 | 125 |
| LCRO-4500 | 4500 GPD (750L/hr) | 4040X3 | 1" | 2.0 HP | 160X80X170 | 205 |
| LCRO-6000 | 6000 GPD (1000L/hr) | 4040X4 | 1" | 2.0 HP | 160X80X170 | 210 |
| LCRO-7500 | 7500 GPD (1250L/hr) | 4040X5 | 1" | 3.0 HP | 160X80X170 | 215 |
| LCRO-9000 | 9000 GPD (1500L/hr) | 4040X6 | 1" | 3.0 HP | 160X80X170 | 230 |
| LCRO-12000 | 12000 GPD (2000L/hr) | 4040X8 | 1-1/2" | 3.0 HP | 160X100X170 | 255 |
| LCRO-18000 | 18000 GPD (3000L/hr) | 4040X12 | 1-1/2" | 4.0 HP | 260X100X170 | 310 |
Remark: All weights and dimensions are approximate. Other custom designs are available upon request
