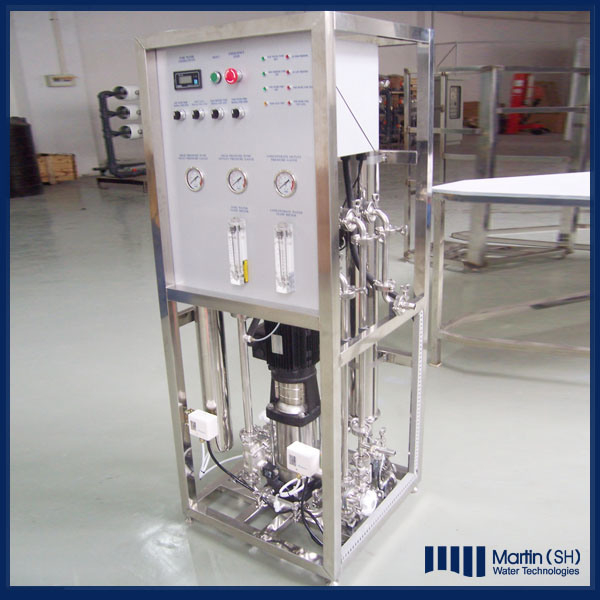

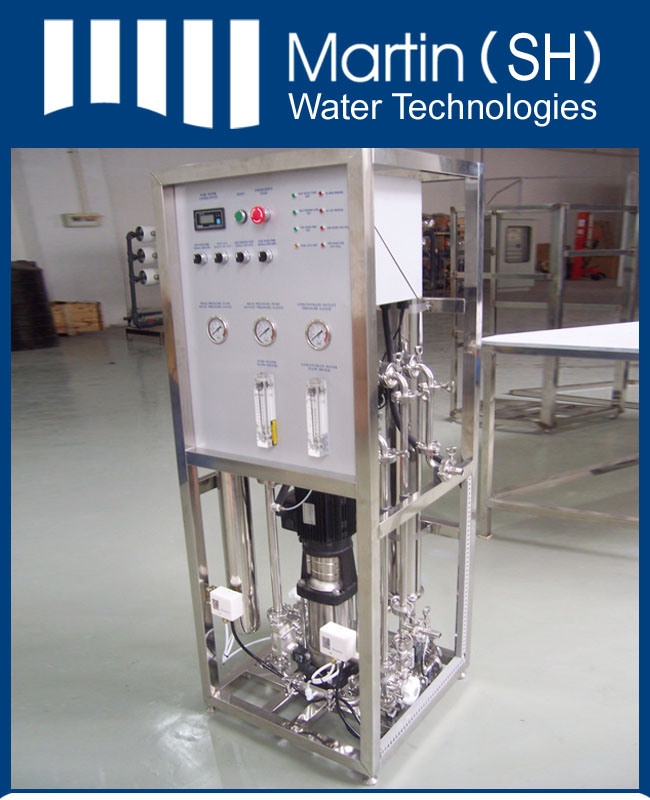

Products Name:Water plant for pharmaceutical industry LCRO-PM Series cover wide range production from 800 to 12000GPD with easy installation and low maintenance. System is high quality components designed and 100% factory & industry tested. Featured as 5-stage RO system only. Years of trouble free service offered.

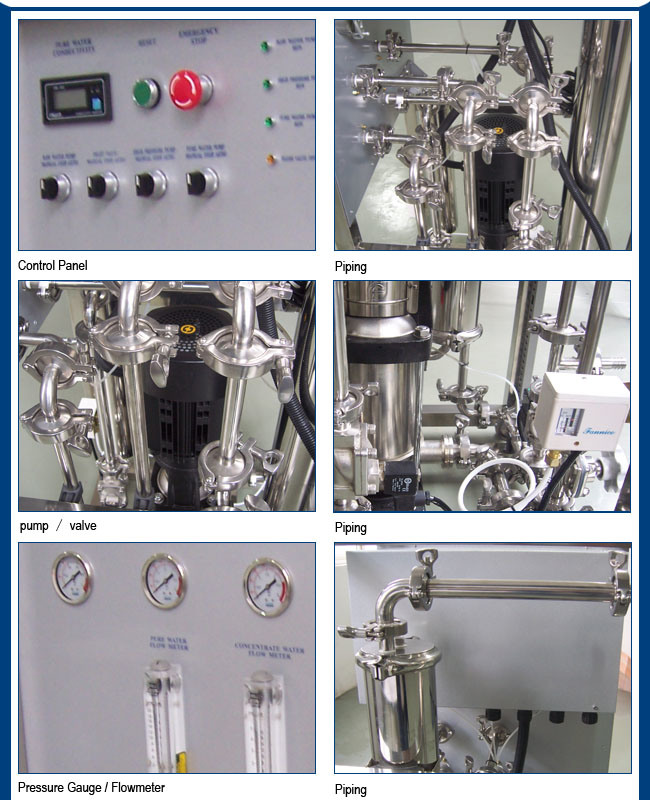

Standard Features: 1. Stainless Steel Frame
2. Thin Film Composite Membranes
3. Stainless Steel RO Vessels
5. 4. High Pressure Pumps
6. PLC Control
7. Power On/Off Switch
8. 5 Microns Pre-filter
9. Product Water Flow Meter
10. Vertical High Pressure Gauge
11.Inlet Low Pressure Gauge
12. Low Pressure Switch
13. Heavy-duty SS316L Piping
14. Level Control On/Off
15. Automatic Flush
16. Low Pressure Shut-Off
NOTE: Pre-Treatment is required. 110V/60Hz and 220V/50Hz available. Standard Wooden Package.
| Product Code | Capacity (Minimum) | Membrane Quantity | Inlet Pipe | Motor | DIMENSION LxWxH (CM) | Ship Weight (KG) |
| LCRO-800-ROC | 800 GPD (125L/hr) | 4021X1 | 3/4" | 0.5 HP | 70X70X165 | 90 |
| LCRO-1500-ROC | 1500 GPD (250L/hr) | 4040X1 | 3/4" | 1.0 HP | 70X70X165 | 120 |
| LCRO-3000-ROC | 3000 GPD (500L/hr) | 4040X2 | 3/4" | 1.0 HP | 70X70X165 | 125 |
| LCRO-4500-ROC | 4500 GPD (750L/hr) | 4040X3 | 1" | 2.0 HP | 160X80X170 | 205 |
| LCRO-6000-ROC | 6000 GPD (1000L/hr) | 4040X4 | 1" | 2.0 HP | 160X80X170 | 210
|
