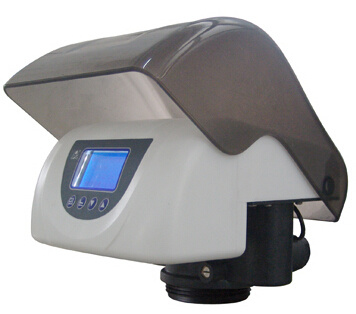

Water Treatment Systems Automatic Softener Control Valve
Technical Parameters
* Water Pressure----------------------------------------------0.15-0.6MPa * Water Temperature-----------------------------------------5ºC-45ºC * Transformer Output-------------------------------------------DC12V,1.5A * Inlet/Outlet-----------------------------------------------------3/4″M * Drain------------------------------------------------------------1/2″M * Brine Line Connector---------------------------------------3/8″M * Base-------------------------------------------------------------2.5″-8NPSM * Riser Pipe------------------------------------------------------1.05 ″OD * Max Flow Rate-------------------------------------------------2 m3/h * Suitable Tank Size (in)--------------------------------------- 6″~12″ * Remark-------------------------------------------------------NO raw water pass the valve in regeneration
Product Characteristics
* It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. * LCD dynamic screen display LCD. * Having long outage indicator * Buttons are locked when no operation within 1 minute * Having partial bypass function * Down-flow regeneration, up-flow regeneration and filter can be implemented with one valve * With signal output connector * With remote handling input connector * With disinfection connector (It is necessary to separately matching with a disinfection device) * With the connector of salt shortage alarm (It is necessary to separately matching with a gravity meter) * It could set up maximum interval regeneration days
Range of Application
1. Residential softening system 2. Ion exchange equipment 3. Boiler softening water system 4. RO pretreatment softening system, etc
Note: Other models are available as per requirements, please sending us an inquiry, we will do our best to help you.
