1. Water Pressure------------------------------------------------0.15-0.6MPa 2. Water Temperature-------------------------------------------5ºC-50ºC 3. Transformer Output-------------------------------------------DC12V,1.5A 4. Water Turbidity------------------------------------------------<20FTU 5. Inlet/Outlet-------------------------------------------------------1″F 6. Drain--------------------------------------------------------------1″F 7. Base---------------------------------------------------------------2.5″-8NPSM 8. Riser Pipe--------------------------------------------------------1.05 ″OD 9. Max Flow Rate---------------------------------------------------4 m3/h 10. Suitable Tank Size (in)-----------------------------------------6″~14″
Product Characteristics
1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. 2. No water passes the valve in rinse in single tank type. 3. LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle. 4. Having long outage indicator 5. It could set up rinsing frequence 6. There are two kinds of time clock types: by hours or by days 7. Buttons are locked when no operation within 1 minute 8. Having interlock function 9. With signal output connector 10. With remote handling input connector 11. With pressure relief connector 12. All parameters can be modified according to the need
Range of Application

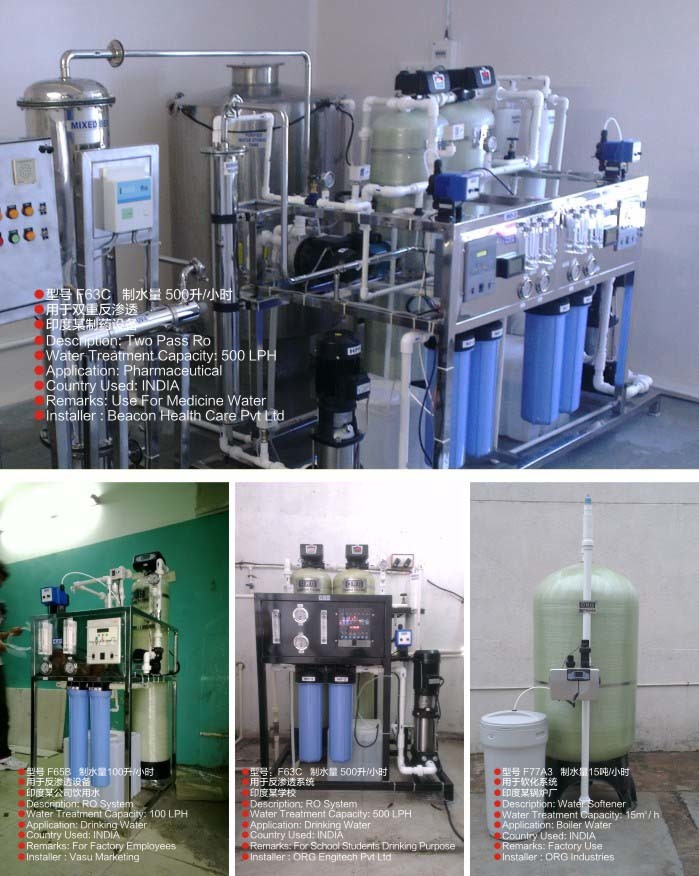

1. Residential filtration system 2. Swimming pool filtration equipment 3. Active carbon or sand filter in RO pretreatment filtration system
Note: Other models are available as per requirements, please sending us an inquiry, we will do our best to help you.
The subsidiary of Martin Group. A professionally, technologically integrated manufacturer and distributor, carrying out activities in the filed of water treatment.
