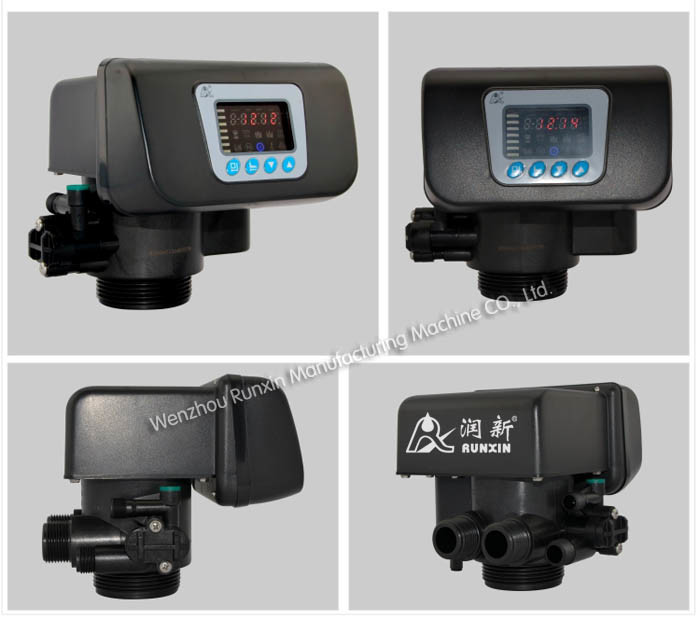

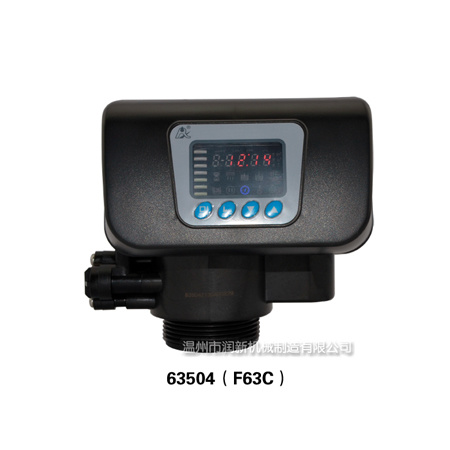

Timer Control Water Valve Electric Control Valve (F63C)
Technical Parameters
1. Water Pressure----------------------------------------------0.15-0.6MPa 2. Water Temperature-----------------------------------------5ºC-50ºC 3. Transformer Output-------------------------------------------DC12V,1.5A 4. Water Turbidity-----------------------------------------------Down-flow regeneration<5FTU 5. Inlet/Outlet-----------------------------------------------------1″M 6. Drain------------------------------------------------------------1/2″M 7. Brine Line Connector---------------------------------------3/8″M 8. Base-------------------------------------------------------------2.5″-8NPSM 9. Riser Pipe------------------------------------------------------1.05 ″OD 10. Max Flow Rate-------------------------------------------------4 m3/h 11. Suitable Tank Size (in)--------------------------------------- 6″~18″
Product Characteristics
1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. 2. No water pass the valve of single tank type in regeneration 3. LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in regeneration cycle. 4. Having long outage indicator 5. It can choose time clock type or meter type by program selection 6. Buttons are locked when no operation within 1 minute 7. Having interlock function 8. With signal output connector 9. With remote handling input connector 10. With pressure relief connector 11. All parameters can be modified according to the need
Range of Application

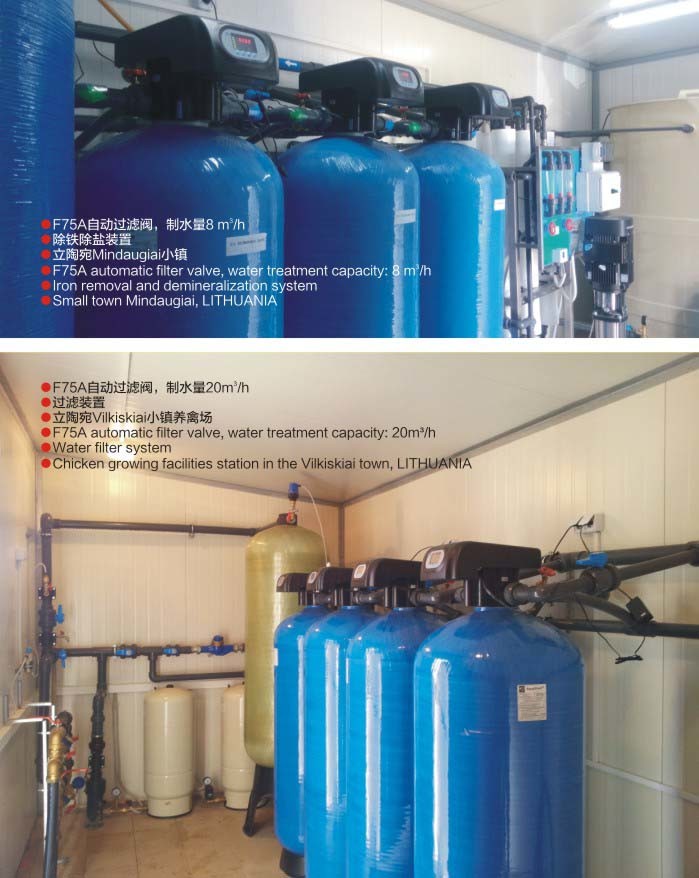

1. Residential filtration system Ion exchange equipment 2. Boiler softening water system 3. RO pretreatment softening system, etc
Note: Other models are available as per requirements, please sending us an inquiry, we will do our best to help you.
