Professional Manufacture of Water Tank

Certification:
ISO9001, CE
Wall Thickness:
3.8mm-7.6mm
Installation:
Sitting Type
Material:
FRP
Type:
Ionizer
Usage:
Environmental Protection, Chemical Industry

Quantity:
Availability:





Inquire Add to Basket

Professional Manufacture of Water Tank Water Tank Water Storage Tank

Product Description

Products Name:Professional Manufacture of water tank

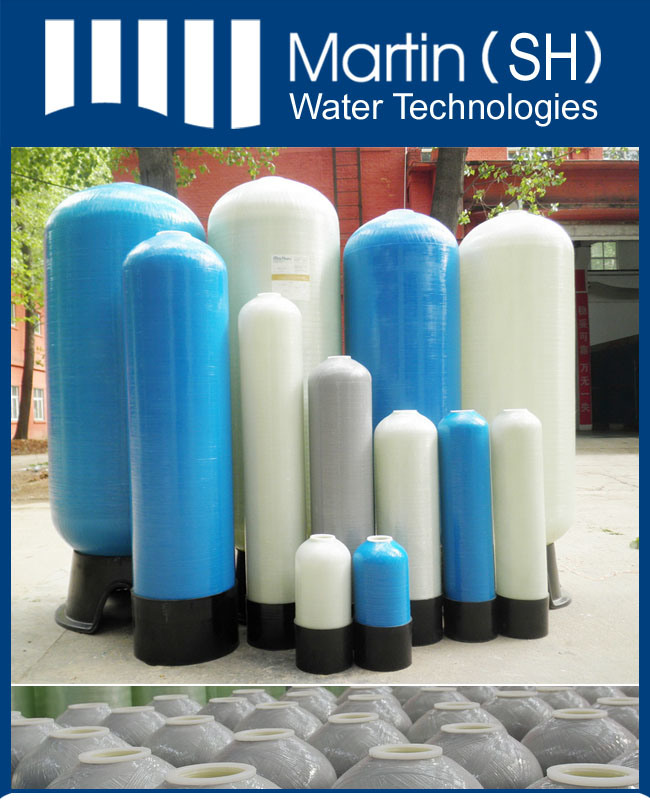

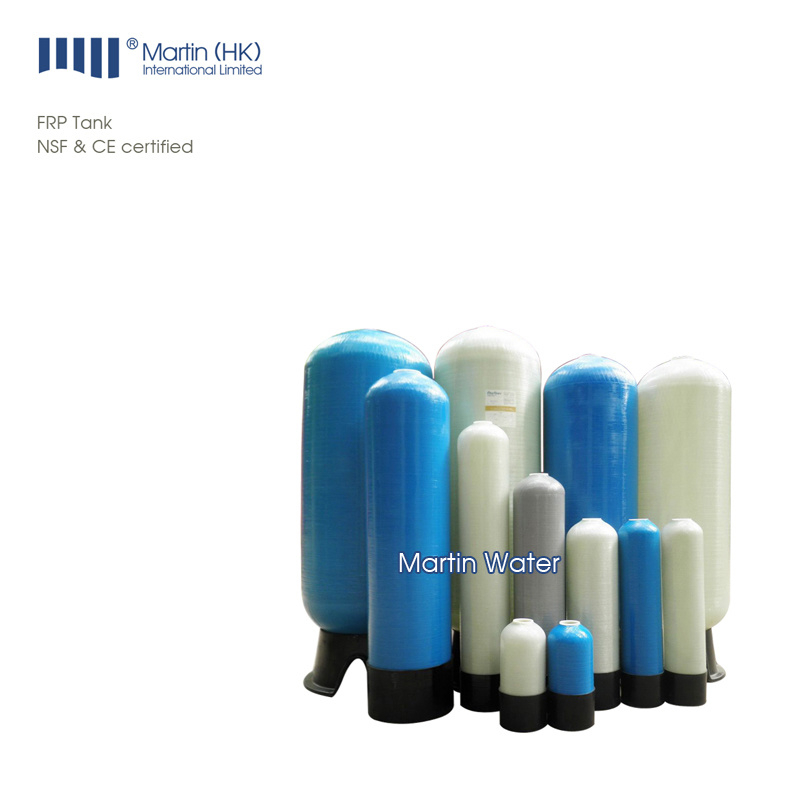

FRP Tanks Martinn (TK735-TK6386)

1) Made up of high performance composite material with filament wound. 100% corrosion resistant.

2) Various thermoplastic liners of polyester, high strength polypro-pene, etc

3) Liner wall thickness available from 0.150"(3.8mm) up to 0.300"(7.6mm) corresponding to the vessel diameter.

4) Full choice of pressure vessel available up to 72" diameter with 94" height.

5) Top & Bottom openings available for 18" through 36" tanks.

6) Maximum Operating Pressure 150 psi (10.5 kgf/cm2),

7) Maximum Operating Temperature 120F(49° C).

8) Low installation and maintenance
Professional Manufacture of Water Tank

No.	Size		Liner Material	Opening		A Diameter		B Height Without Base		C Height With Base		Capacity
	(In)	(mm)		Top	Bottom	(In)	(mm)	(In)	(mm)	(In)	(mm)	Gallons	Liters
1	06×18	140×457	PE	2.5" Threaded	N/A	6	152	18	455	18.5	470	1.1	4.2
2	07×24	170×610	PE	2.5"Threaded	N/A	7	181	24	610	24.5	624	3.8	15
3	07×35	170×890	PE	2.5"Threaded	N/A	7	181	35	890	35.6	905	5.2	19.7
4	08×17	200×430	PE	2.5"Threaded	N/A	8	206	17	430	17.6	445	3.1	11.7
5	08×35	200×890	PE	2.5"Threaded	N/A	8	206	35	890	35.6	905	6.6	25
6	08×44	200×1115	PE	2.5"Threaded	N/A	8	206	43.9	1115	44.5	1130	8.7	32.9
7	09×35	220×890	PE	2.5"Threaded	N/A	9	232	35	890	35.6	905	8.3	31.4
8	09×40	220×1005	PE	2.5"Threaded	N/A	9	232	40	1005	40.2	1020	9.5	36
9	09×48	220×1005	PE	2.5"Threaded	N/A	9	232	48	1215	48.4	1225	12.7	48
10	10×17	240×430	PE	2.5"Threaded	N/A	10	257	17	430	17.6	445	4.8	18.2
11	10×35	240×890	PE	2.5"Threaded	N/A	10	257	35	890	35.6	905	10.2	38.6
12	10×44	240×1115	PE	2.5"Threaded	N/A	10	257	43.9	1115	44.5	1130	13.1	49.6
13	10×54	240×1370	PE	2.5"Threaded	N/A	10	257	54.1	1375	54.7	1390	16.4	62
14	12×52	300×1320	PE	2.5"Threaded	N/A	12	308	52	1320	52.8	1340	22.2	84
15	12×52	300×1320	PE	4.5"Threaded (BTRS)	N/A	12	308	52	1320	52.8	1340	22.2	84
16	13×54	330×1370	PE	2.5"Threaded	N/A	13	334	54	1370	54.7	1390	27.5	104
17	14×65	350×1620	PE	2.5"Threaded	N/A	14	360	63.8	1620	64.6	1640	40.6	154
18	14×65	350×1620	PE	4"Threaded	N/A	14	360	63.8	1620	64.6	1640	40.6	154
19	16×65	400×1620	PE	2.5"Threaded	N/A	16	410	63.8	1620	64.6	1640	49	185
20	16×65	400×1620	PE	4"Threaded	N/A	16	410	63.8	1620	64.6	1640	49	185
21	16×65	400×1620	PE	4"Threaded	4"Threaded	16	410	63.8	1620	64.6	1640	49	185
22	18×65	450×1650	PE	4"Threaded	N/A	18.5	470	65.6	1665	74.9	1902	66.8	253
23	18×65	450×1650	PE	4"Threaded	4"Threaded	18.5	470	65.6	1665	74.9	1902	66.8	253
24	20×72	500×1800	PE	4"Threaded	N/A	20.5	520	70.9	1800	80.4	2042	89	337
25	20×72	500×1800	PE	4"Threaded	4"Threaded	20.5	520	70.9	1800	80.4	2042	89	337
26	21×62	530×1600	PE	4"Threaded	N/A	21.7	550	63	1600	72.5	1842	88	333
27	21×62	530×1600	PE	4"Threaded	4"Threaded	21.7	550	63	1600	72.5	1842	88	333
28	24×72	600×1800	PE	4"Threaded	N/A	24.4	620	70.9	1800	80.4	2042	126.8	480
29	24×72	600×1800	PE	4"Threaded	4"Threaded	24.4	620	70.9	1800	80.4	2042	126.8	480
30	30×72	750×1800	PE	4"Threaded	N/A	30.5	775	70.9	1800	80.5	2045	195.5	740
31	30×72	750×1800	PE	4"Threaded	4"Threaded	30.5	775	70.9	1800	80.5	2045	195.5	740
32	36×72	900×1800	PE	4"Threaded	N/A	36.4	925	70.9	1800	84.4	2145	283	1071
33	36×72	900×1800	PE	4"Threaded	4"Threaded	36.4	925	70.9	1800	84.4	2145	283	1071
34	40×72	1000×1800	PE	6" FLG	6" FLG	40.4	1025	70.9	1800	84.6	2148	338.7	1282
35	42x 72	1070x1800	PE	6" FLG	6" FLG	42.4	1070	70.9	1800	84.6	2148	346	1310
36	48×72	1200×1800	PE	6" FLG	6" FLG	48.2	1225	70.9	1800	82.9	2105	477.7	1808
38	60X86	1500x2150	PE	6" FLG	6" FLG	60.2	1530	84.69	2150	96.31	2453	840	3179
40	63X86	1575X2150	PE	6" FLG	6" FLG	61.45	1560	84.69	2150	96.31	2453	924.7	3500
