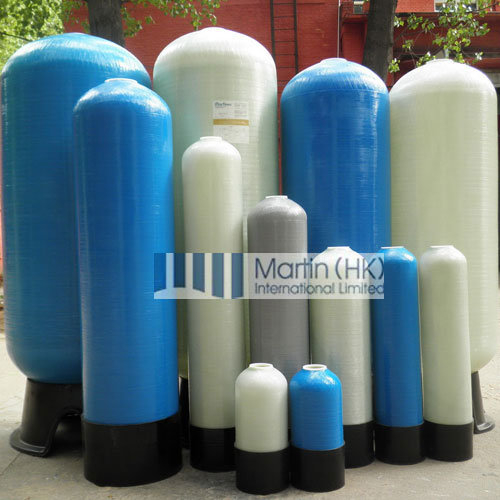

Martin 150 PSI 1252 1354 FRP Pressure Vessel/FRP Tank FRP have been a favorite material for the composition of the various products since it is invented, due to sharing some of the unrivalled characteristics, which are hard to find together in other polymers. The properties for which we have adopted FRP covers: - High strength to weight ratio
- Lightweight with high strength
- Completely recyclable - Environmentally friendly
- Excellent resistance against corrosion
- Outstanding impact resistance
- Retention of dimensional stability across a broad range of temperatures
- Considerable levels of stiffness
- Good electrical insulating properties
- Non-magnetic and non-sparking
- Low thermal conductivity
- Versatile - Design freedom
- Rapid installation with standard tools
- RF transparency
Specification 1.Material: inner shell-Polyethylene (PE),Outer shell-Fiberglass with Epoxy resin
2.Working pressure:1.0MPa / 150PSI / 10 Bar

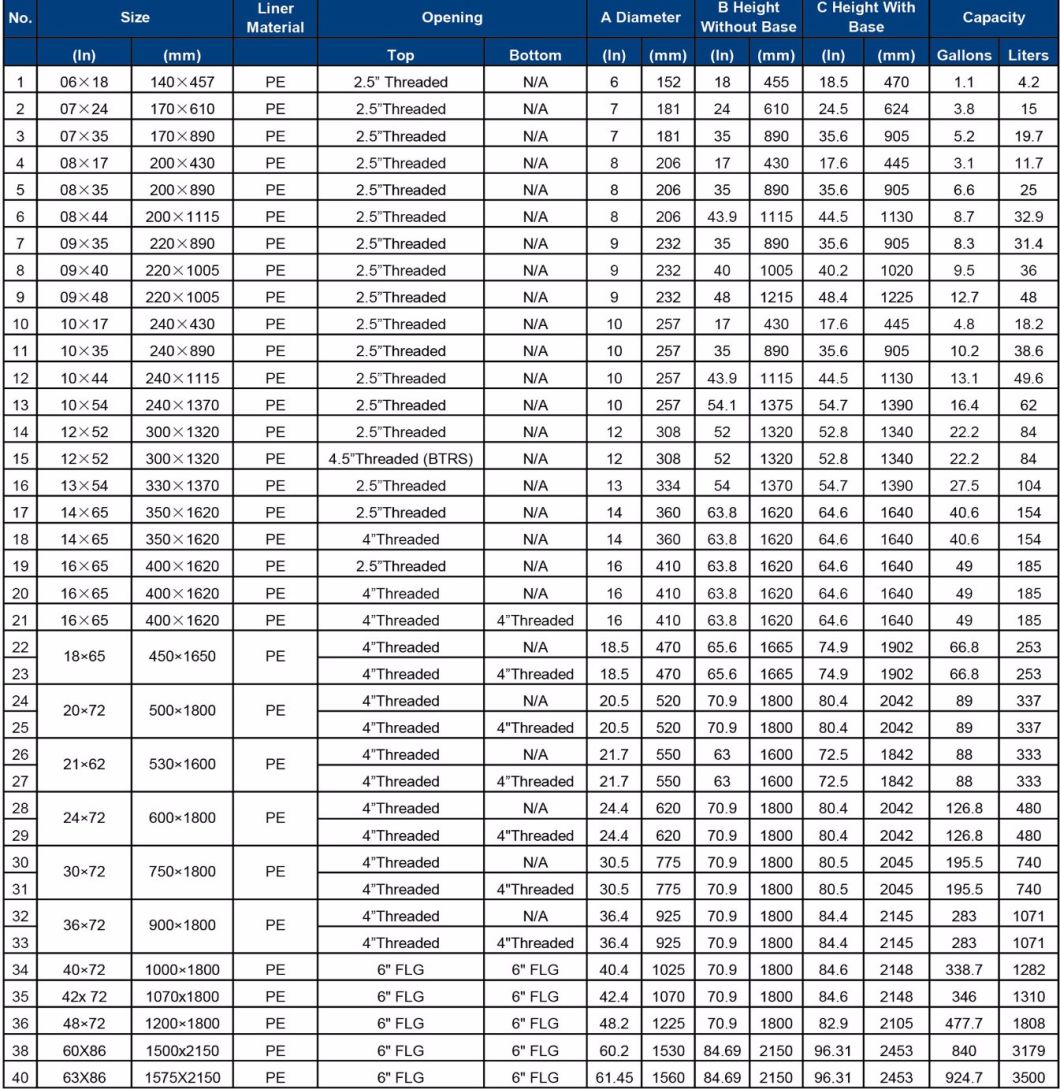

3.Diameter dimension: From 8" to 63" inch ( 205mm to 1500mm)
Material:
1.inner shell - Polyethylene (PE) seamless one-piece tank liner
2.Outer shell - Continuous strands of fiber-glass with high strength epoxy resin
3.Bottom base - FRP reinforced tripod base
4.Opening -2.5"&4" precision injected model with threaded opening from 8" to 36" diameter tanks (e). Opening - 6 "Aluminum flange (anti-corrosion coating) opening for 36", 42" ,48", 63" diameter tanks
Working Pressure:
1.≤1.0MPa(150PSI)
2.Working Temperature:≤49°C
3.Maximum Vacuum:127mmHg(5"Hg).
4.Maximum Temperature:40C (104F)
5.Certificates:CE;;ISO9001 etc.
6.Media:water
7.Warranty:3 years
Application:
All feed water and waste water treatment application, included multi-media filter and softener.

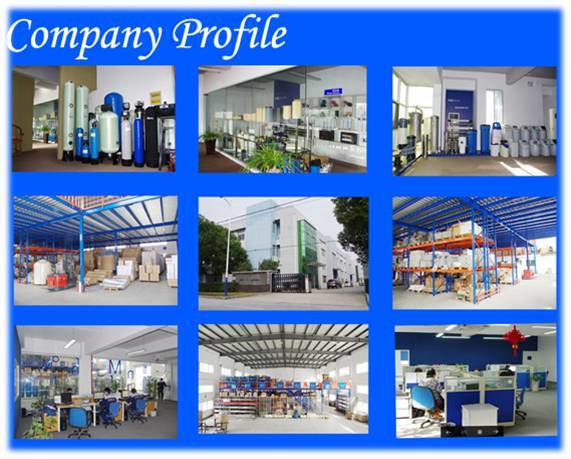

Our company and factory introduction:
We are a HK company with its main operation in Shang hai China, an internationally,technologically integrated manufacturer and distributor company,carrying out activities in the field of wter treatment. The company operates internationally and is constantly developing its technology,offers cilents worldwide the most effective and advance water treatment solutions.
Shipping Ways:
1.By express: DHL,UPS,FEDEX,EMS etc,usually for small or regular and urgent orders;
2.By sea transportation for bulk quantity;
3.By air transportation.
Payment:
We accept TT payment(Bank Transfer),L/C,Western Union & Cash,etc...
For more details, contact me soon!
