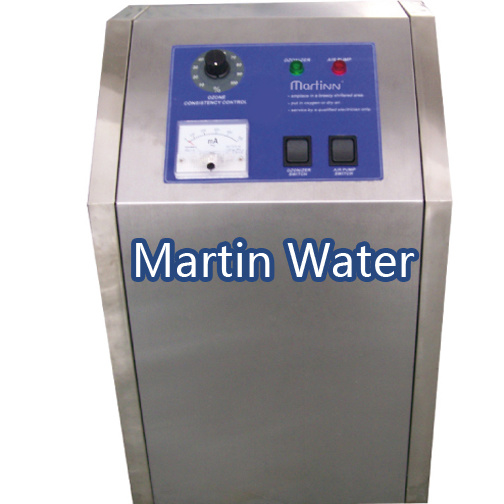

Ozone Generator:
Martin series of Ozone generator apply transistor gate inverting technology. Discharging room is consisted of non-hydroxide crystal tube. There are special designs to avoid water return. We apply module design technology on electric board and choose good anti-oxidation components for pipes\connectors and other parts. These keep OZ series to be long life\big discharge area\low working temperature and high Ozone concentration.
Features:
Air cooling, adjustable Ozone output.
Special design to avoid water return.
Long life discharge cell, continuous running.
Stainless steel casing.
Two types of gas source: Compressed air or oxygen
Components:
Discharge cell\stainless casing\60L air compressor\current meter\150 fan
| Parameter \ Model | MT-OZ-3G | MT-OZ-5G | MT-OZ-7G | MT-OZ-10G | MT-OZ-15G |
| Ozone Output (g/h) | 3 | 5 | 7 | 10 | 15 |
| Cooling | Air Cooling |
| Max Ozone Concentration (g/m3) | Oxygen Source:25-45; Air Source: 5-15 |
| LxWxH (mm) | 350x250x520 | 350x250x580 | 350x250x630 |
| Weight (kg) | 11 | 13 | 13 | 22 | 22 |
| Power (W) | 140 | 160 | 160 | 180 | 180 |
| Power Source | 220-240V/50-60Hz 110V/ 50-60Hz |
| Gas Source | Oxygen or Clean and dry air |
Detailed Pictures
