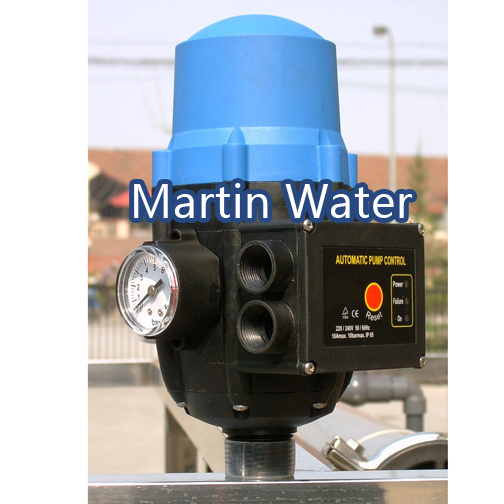

Electronic Pressure Controller The electronic pressure controller for water pump is an intelligent pump control device installed on the pipeline. It can start and stop the pump according to the varied data such as water resource condition and pipeline pressure it detected. It can completely replace the traditional system constructed by pressure tank, pressure switch, watr shortage protection devices, check valve and four-way valves. The particular patented check valve device can prevent the possible surging in the system. Pressure gauge shows system pressure variation and its inlet and outlet are assembled in 90° right angle. The starting flow is 80-160L/hr and can meet any needs for home and garden sprinkling irrigation application.
* Guarantee the optimum control of electric pumps used in a plumping systems
* Maintain both pressure and flow
* Automatically control the pump operation
* Pressure Adjustable: 1.5~3bar
Technical parameters: * Rated voltage: 220V-240V 110V-115V
* Max. Current: 10A
* Frequency: 50-60Hz
* Max. Power: 1.1KW, 1.5KW
* Max working pressure: 10bar
* Joint Screw: 1"
* Protection Grade: IP65
* Max working temperature: 60ºC

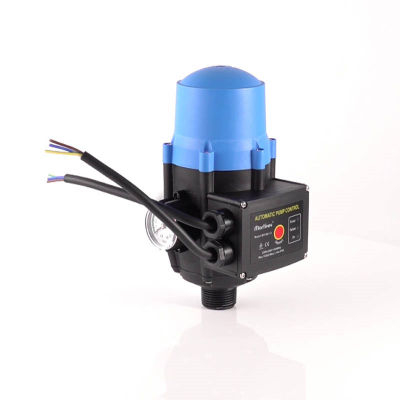

Detailed Pictures
