Products Name:Exper Manufacture of commercial water purification system
1.High quality components designed;
2.Feature with simple user-friendly controls,easy access for maintenance and installaton;
3.100%factory & industry tested;
4.Years of trouble free service offered;
5.CE Certified.
SCRO Series

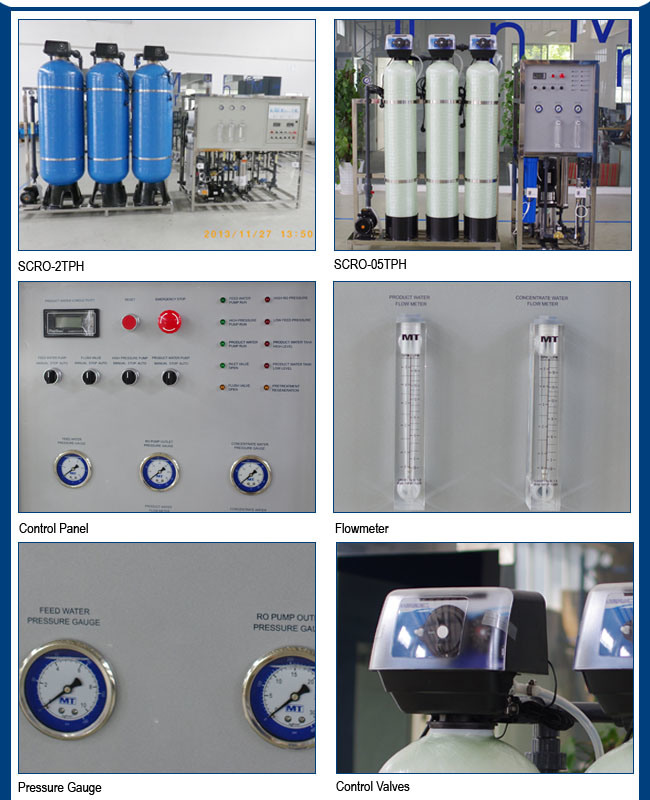

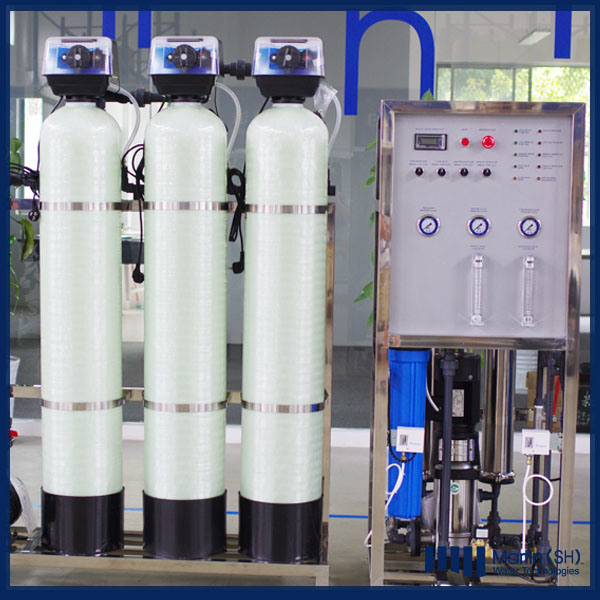

Martin SCRO Series Reverse Osmosis Systems cover a wide range production from 800 to 18000GPD with easy installation and low maintenance. System is high quality components designed and 100% factory & industry tested. Years of trouble free service offered.
Standard Features:
1. Stainless Steel 304 Frame
2. Sand Filter FRP Tank with Mechanical Control Valve
3. Carbon Filter FRP Tank with Mechanical Control Valve
4. Water Softener FRP Tank with Mechanical Control Valve
5. Thin Film Composite Membranes
6. Stainless Steel 304 RO Vessels Seamless
7. Horizontal Feed Pump
8. Vertical High Pressure Pumps
9. PLC Control
10. Power On/Off Switch
11. 5 Microns Pre-filter
12. Product Water Flow Meter
13. Concentrate Water Flow Meter
14. High Pressure Pump Inlet Pressure Gauge
15. High Pressure Pump outlet Pressure Gauge
16. Concentrate Outlet Pressure Gauge
17. Low Pressure Switch
18. High Pressure Switch
19. Heavy-duty PVC Piping
20. Level Control On/Off
21. Automatic Flush
22. Low Pressure Shut-Off
23. Optional UV Sterilizer , Ozone and SS Jacket
NOTE: 110V/60Hz and 220V/50Hz Available. Standard Poly-Wood Package.
Remark: All weights and dimensions are approximate. Other custom designs are available upon request
Valves listed above don't refer particularly to any models or manufactures.
Product Code | Capacity (Minimum) | Membrane Quantity | Inlet Pipe | Motor | Multi-media Filter / AC Filter | Softener | DIMENSION LxWxH (CM) | Ship Weight (KG) |
SCRO-800 | 800 GPD (125L/hr) | 4021X1 | 3/4" | 0.5 HP | FT5600/TK1054 | ST5600/TK1054 | 170X90X185 | 180 |
SCRO-1500 | 1500 GPD (250L/hr) | 4040 x1 | 3/4" | 1.0 HP | FT5600/TK1054 | ST5600/TK1054 | 170X90X185 | 180 |
SCRO-3000 | 3000 GPD (500L/hr) | 4040X2 | 3/4" | 1.0 HP | FT5600/TK1054 | ST5600/TK1054 | 170X90X185 | 200 |
SCRO-4500 | 4500 GPD (750L/hr) | 4040X3 | 1" | 2.0 HP | FT5000/TK1465 | ST5000/TK1465 | 170X90X185 | 220 |
SCRO-6000 | 6000 GPD (1000L/hr) | 4040X4 | 1" | 2.0 HP | FT5000/TK1665 | ST5000/TK1665 | 190X100X210 | 280 |
SCRO-7500 | 7500 GPD (1250L/hr) | 4040X5 | 1" | 3.0 HP | FT5000/TK1665 | ST5000/TK1665 | 190X100X210 | 350 |
SCRO-9000 | 9000 GPD (1500L/hr) | 4040X6 | 1-1/4 | 3.0 HP | FT5000/TK1865 | ST5000/TK1865 | 190X100X210 | 370 |
SCRO-12000 | 12000 GPD (2000L/hr) | 4040X8 | 1-1/2 | 3.0 HP | FT2850/TK2162 | ST2850/TK2162 | 220X120X210 | 450 |
SCRO-18000 | 18000 GPD (3000L/hr) | 4040X12 | 1-1/2 | 4.0 HP | FT2850/TK2472 | ST2850/TK2472 | 245X120X210 | 600 |
