SS304/ SS316
PP
PP Filter Bag
The Filter Type
Mesh Filter Bag
Liquid Filter
| Quantity: | |
|---|---|

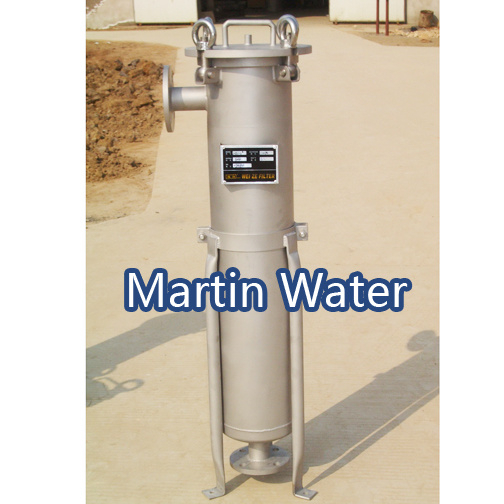

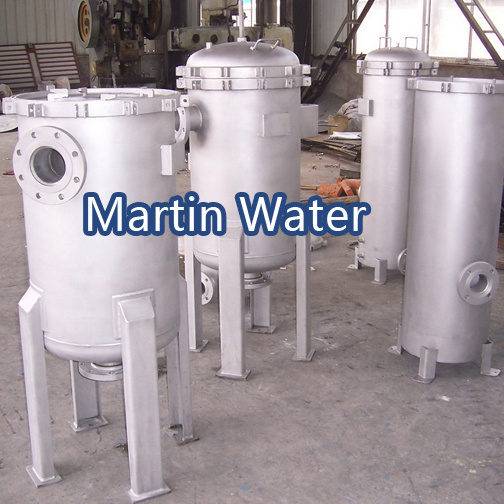

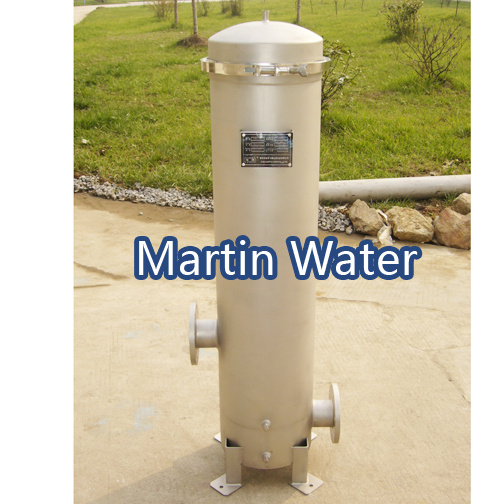

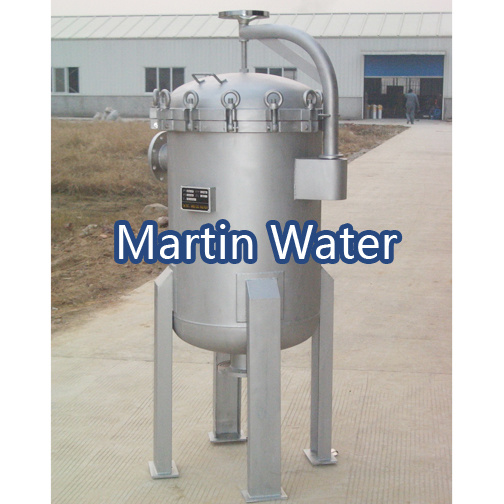

| Filter Type | BFHV | BFH | BFHD | ||||||||
| Flow Type | Side-entry, V-clamp | Side-entry, Eye-bolt Flange | Side-in,Top-enter | ||||||||
| Model | 3-1 | 4-1 | 1-1 | 2-1 | 3-1 | 4-1 | 1-1 | 2-1 | 1-1 | 2-1 | |
| Max Working Pressure (Bar) | 6 | 6 | 6 | 6 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Max operating Temperature | 60 'C | 60 'C | 60 'C | 60 'C | 80 'C | 80 'C | 80 - C | 80 'C | 80 'C | 80 'C | |
| Max Flux (m 3 ) | 5 | 10 | 20 | 40 | 5 | 10 | 20 | 40 | 20 | 40 | |
| Filtration Surface(m 2 ) | 0.05 | 0.09 | 0.19 | 0.41 | 0.05 | 0.09 | 0.19 | 0.41 | 0.19 | 0.41 | |
| Bag Filter Code | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 1 | 2 | |
| Bag Filter Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Connection Size (N1/N2) | 1" | 1" | 11/2" | 2" | 1" | 1" | 11/2" | 2" | 2" | 2" | |
| Connection Type (Nl/N2 | Threaded | Threaded | Threaded | Flange | Threaded | Threaded | Flange | Flange | Flange | Flange | |
| Size (mm) | A | 270 | 430 | 480 | 900 | 270 | 430 | 500 | 900 | 400 | 800 |
| B | 100 | 100 | 130 | 180 | 100 | 100 | 180 | 180 | 280 | 280 | |
| C | 400 | 560 | 580 | 1000 | 400 | 560 | 660 | 1050 | 600 | 1000 | |
