4.5in Big Blue Cartridge Filter Housing Water Treatment Parts

You are here: Home » Products » SS Filters, Housings & Vessels » 4.5in Big Blue Cartridge Filter Housing Water Treatment Parts

4.5in Big Blue Cartridge Filter Housing Water Treatment Parts

Type:
Reverse Osmosis
Usage:
Environmental Protection
Motive Force:
Pressure
Style:
Vertical
Performance:
Efficient Filtration
Certification:
CE

Quantity:
Availability:





Inquire Add to Basket

Filter Housing Water Filter Housing 4.5in Big Blue Cartridge Filter Housing Water Treatment Parts

Product Description

Martin Water Filter Housing

Filter Housings are manufactured from the highest quality, food grade 100% constructed of reinforced polypropylene & AS or PC, EPDM O-Ring seals. It's ideal for RO and Filtration systems. Fits most standard 9 3/4" and 19 1/2" filter cartridges.

Residential Filter Housings

Operating Data

1) Working Pressure: 125psi/ (8.5kg/cm2)
2) Max. Temperature: 120°F (50°C)

Testing Data

1) Bursting Pressure: 500 PSI
2) Cycle Test: 0-150 psi, 100,000 cycles

4.5in Big Blue Cartridge Filter Housing Water Treatment Parts

2.5" High Flow Filter Housings

Filter Housings are manufactured from the highest quality, food grade 100% constructed of reinforced polypropylene & AS or PC, EPDM O-Ring seals. With Pressure Release Valve, it's ideal for RO and Filtration systems. Both for residential and commercial use such as, irrigation, farm, food industry and others Fits most standard 9 3/4" and 19 1/2" filter cartridges.

Operating Data

1) Working Pressure: 150PSI (10kg/cm²)
2) Max. Temperature: 120°F (50°C)

Testing Data

1) Bursting Pressure: 525PSI (35kg/cm²)
2) Cycle Test: 0-150 psi, 100,000 cycles

4.5in Big Blue Cartridge Filter Housing Water Treatment Parts

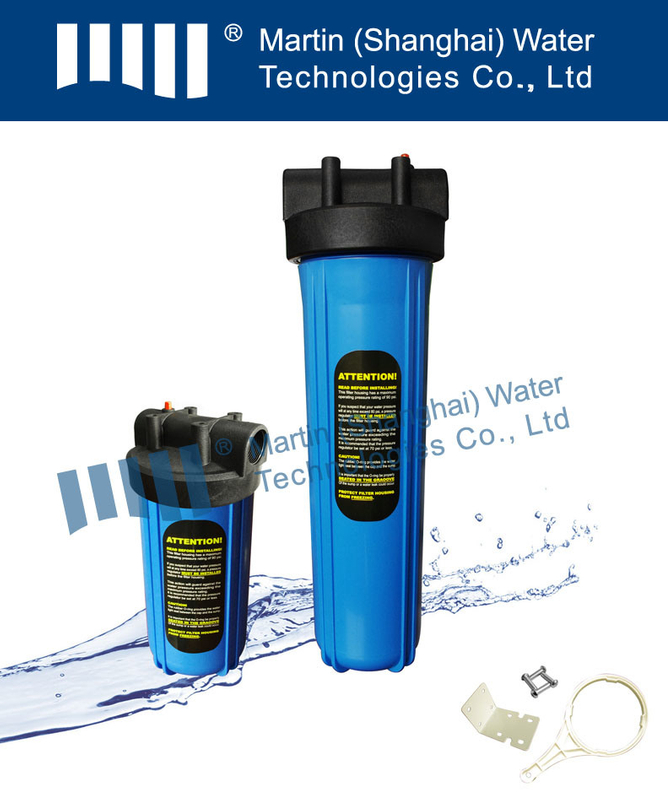

4.5" Big Blue Filter Housings

Filter Housings are manufactured from the highest quality, food grade 100% constructed of reinforced polypropylene & PC, EPDM O-Ring seals. With Pressure Release Valve, it's ideal for RO and Filtration systems. Both for residential and commercial use such as, irrigation, farm, food industry and others. Fits most 9 3/4" and 19 1/2" big blue filter cartridges.

Operating Data

1) Working Pressure: 150PSI (10kg/cm²)
2) Max. Temperature: 120°F (50°C)

Testing Data

1) Bursting Pressure: 525PSI (35kg/cm²)
2) Cycle Test: 0-150 psi, 100,000 cycles

Product Code	Description	Air-release button	NPT	Case	Dimension (CM)	Ship Weight
HB-10BBK10	10" Big Blue Housing, Black Cap	Yes	1"	4	39X39X40	10kgs
HB-10BBK15	10" Big Blue Housing, Black Cap	Yes	1.5"	4	39X39X40	10kgs
HB-20BBK10	20" Big Blue Housing, Black Cap	Yes	1"	4	40X40X63	16kgs
HB-20BBK15	20" Big Blue Housing, Black Cap	Yes	1.5"	4	40X40X63	16kgs

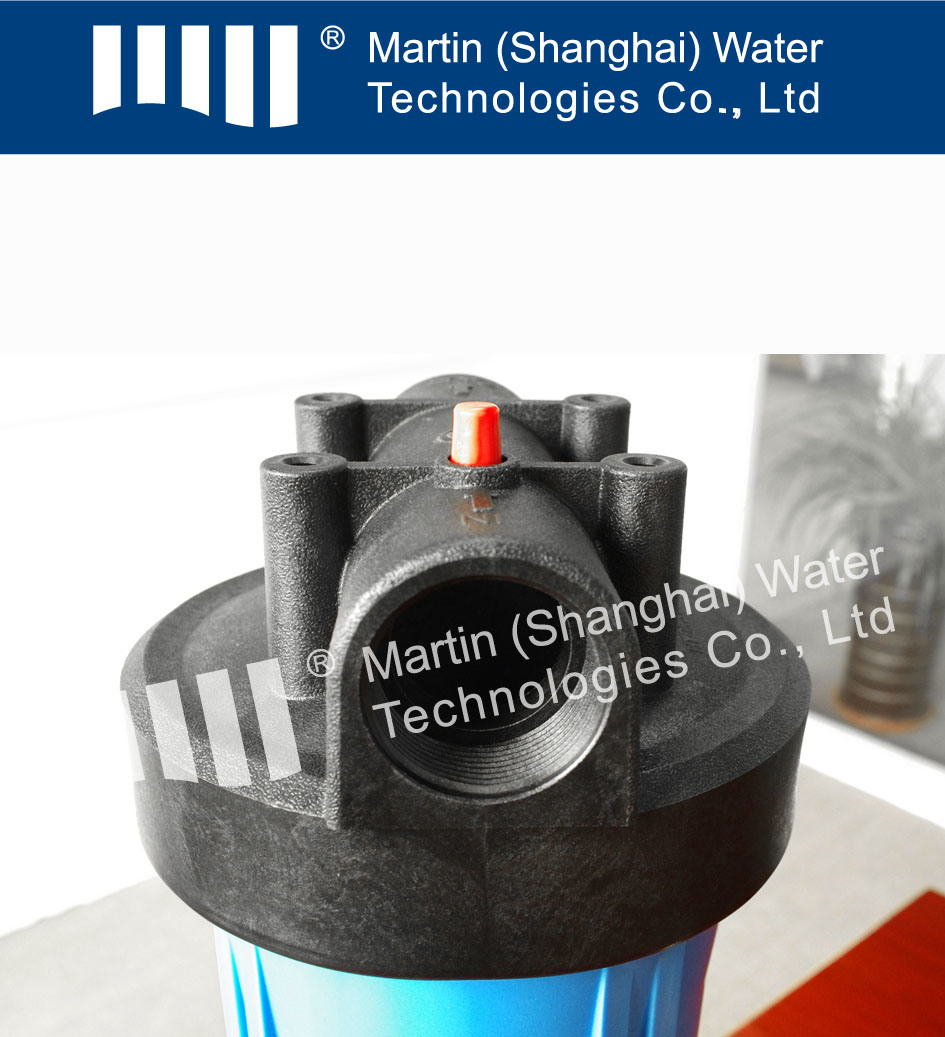

Big blue housing details pictures:
