Professional Manufacture of Salt Water Purifier

Products Name:Professional Manufacture of salt water purifier

1. High quality components designed;

2. Feature with simple user-friendly controls,easy access for maintenance and installation;
3. 100% factory & industry tested;
4. Years of trouble free service offered;
5. CE Certified.

SWRO Commercial Series

Martin SWRO Commercial series are available with capacities ranging from 150 GDP to 1200 GDP. Designed to convert seawater to drinking water, these systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment. Their compact design makes them ideal for use on yachts, boats, cruise ships, and resorts.

Standard Features

1. Thin Film Composite Seawater RO Membranes
2. FRP Seawater Membrane Housing
3. Aluminium Bronze or Stainless Steel High Prssure Pumps
4. Permeate and Concentrate Flow Meters
5. Low and High Pressure Switch
6. Compact Powder Coated Frame
7. Automatic Operation with Level Controls
8. Stainless Steel Back Pressure Control
9. 5 Micron Sediment Filter and Housing
10. High Pressure Relief Valve
11. Auto feed Shut-Off
12. Liquid Filled System Pressure Gauge
13. Microprocessor Controller for Automatic Operatin.

System Working Conditions:

1. Based on 35,000 ppm seawater at 77°F (25 Cent).
2. Recovery in the range of 10-15%.
3. Operating pressure 800-1000 psi (57-71 kg/cm²).

Martin Seawater RO Systems are available in a variety of voltages. Please select the desired voltage code as below. The three-digit code will be added to the end of the Seawater RO System Model number. Example: SWRO-400-116 = 110v/1ph/60Hz. Voltage Codes (available for all models):
-116 = 110V/1Ph/60Hz
-216 = 220-240V/1Ph/60Hz
-215 = 220-240V/1Ph/50Hz
-235 = 220-240V/3Ph/50Hz
-236 = 220V-240V/3Ph/60Hz
-335 = 380V-420V/3Ph/50Hz

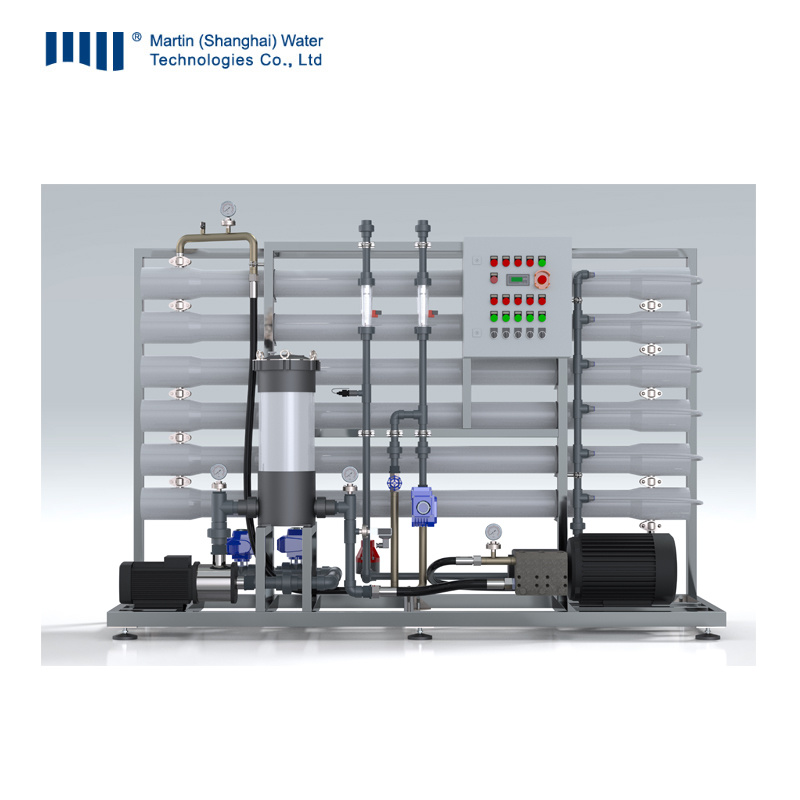

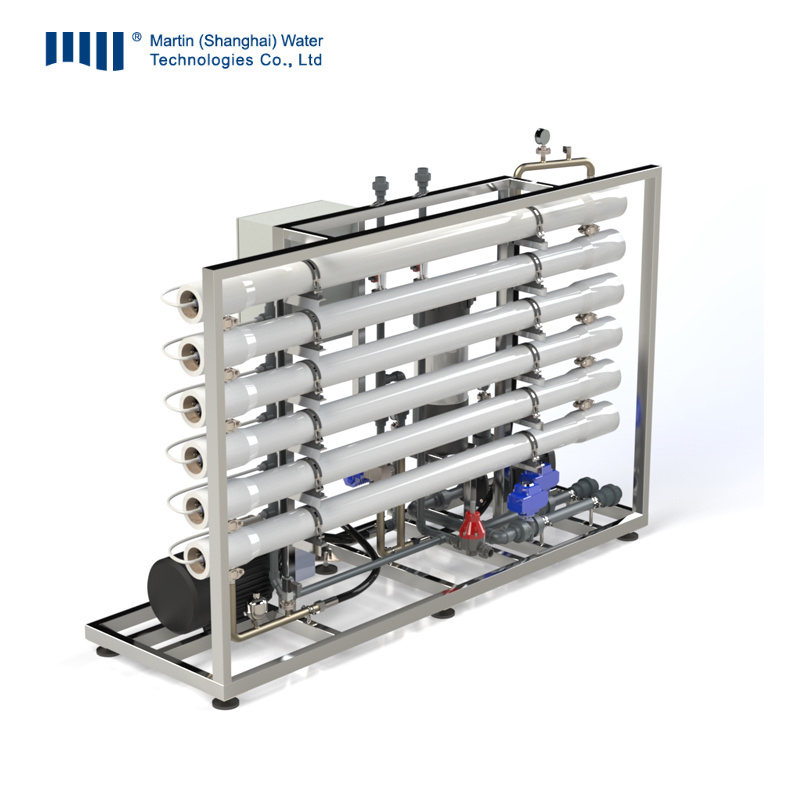

SWRO Industrial Series
SWRO industrial series are available with capacities ranging from 2000 GDP to 132000 GDP. Designed to convert seawater to drinking water, these systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment. By using high quality reverse osmosis seawater membranes in the water purification process, the product water is used in a variety of areas including hotels, resorts, navy, and off-shore platforms, etc.

Standard Features

1. Thin Film Composite Seawater Membranes
2. FRP Seawater Pressure Vessels
3. Prefilter & Housing
4. 316 Stainless Steel Pressure Gauges
5. 316 Stainless Steel Low and High Pressure Switches
6. 316 Stainless Steel Back Pressure Regulator
7. Low and High Pressure Safeguards
8. Stainless Steel High Pressure Pumps
9. Pulsation Dampner
10. Pressure Relief Valve
11. Auto Operation with Level Controls
12. Reset Switch to Restart
13. Powder Coated Skid
14. Permeate and Concentrate Flowmeters
15. PLC Controls

OPTIONAL

1. Ultraviolet Sterilizer*
2. Sodium Bisulfite or Chlorine Injection System
3. Differential Pressure Gauge
4. Energy Recovery
5. Turbidity Meter
6. ORP Meter
7. Duplex Stainless Steel High Pressure Pump
8. Multimedia Filters

Energy Recovery (Optional)

1. Energy recovery systems recover energy from the waste stream of seawater reverse osmosis (SWRO) systems at up to 98% efficiency.
2. Energy recovery will normally pay for itself in energy savings and especially make economical sense in areas where electricity costs are high.
3. Main high pressure pump is sized to only the permeate flow rather than the full membrane inlet flow allowing energy savings almost 50% over 20-35% from other manufacturers.

System Working Conditions:
1. Based on 35,000 ppm seawater at 77°F (25 Cent).
2. Recovery in the range of 10-40% depending on the system size.
3. Operating pressure 800-1000 psi (57-71 kg/cm²).
