Professional Manufacture of Aqua Pure Water Filter

Products Name:Professional Manufacture of aqua pure water filter

1. High quality components designed;

2. Feature with simple user-friendly controls,easy access for maintenance and installation;
3. 100% factory & industry tested;
4. Years of trouble free service offered;
5. CE Certified.

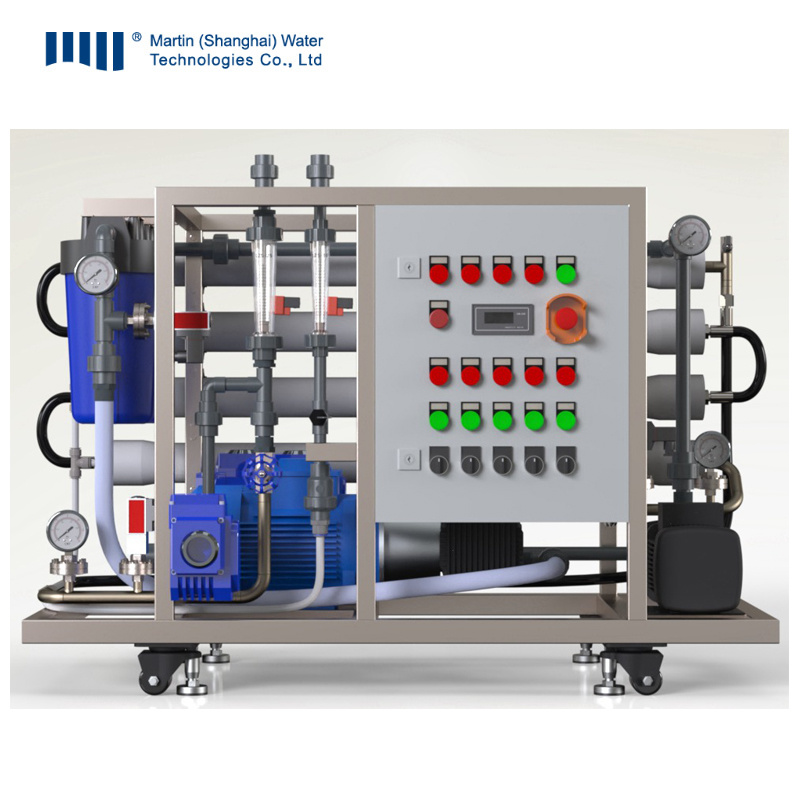

SWRO-25 Series

SWRO-25 series are available with capacities ranging from 400 GDP to 1600 GDP. Designed to convert seawater to drinking water, these systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment. By using high quality reverse osmosis seawater membranes in the water purification process, the compact design makes the systems ideal for use on yachts, boats, cruise ships, and resorts.

Standard Features

• Auto start-up flush
• Slow Start-up pressure build up
• Auto Shut-down flush water high flow flush
• Auto Shut-down flush water replacement
• Auto Shut-down pressure release
• RO low pressure/high pressure protection
• pumps and valves switching smoothly
• SS304 Skid with automobile grade coating
• SS304 control panel with automobile grade coating
• Auto and manual 2 modes operation
• With pulsation dampener
• Diaphragm isolation seals for pressure switches
• Diaphragm isolation seals for high pressure gauges
• Permeate and concentrate water low flow protection

Benefits

• Fully Equipped and Customizable
• Individually Tested and preserved
• Expandable and Skid Mounted
• Low Operation and Maintenance Costs
• Components Easily Accessible
• Easy Maintenance and Servicing
• Pre-Plumbed Wired and Assembled
• 3-Year Limited Warranty

Martin Seawater RO Systems are available in a variety of voltages. Please select the desired voltage code as below. The three-digit code will be added to the end of the Seawater RO System Model number.
Example: SWRO-2000-116 = 110v/1ph/60Hz. Voltage Codes (available for all models):

-116 = 110V/1Ph/60Hz
-216 = 220-240V/1Ph/60Hz
-215 = 220-240V/1Ph/50Hz
-235 = 220-240V/3Ph/50Hz
-236 = 220V-240V/3Ph/60Hz
-335 = 380V-420V/3Ph/50Hz

SWRO Industrial Series
SWRO industrial series are available with capacities ranging from 2000 GDP to 132000 GDP. Designed to convert seawater to drinking water, these systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment. By using high quality reverse osmosis seawater membranes in the water purification process, the product water is used in a variety of areas including hotels, resorts, navy, and off-shore platforms, etc.

Standard Features

1. Thin Film Composite Seawater Membranes
2. FRP Seawater Pressure Vessels
3. Prefilter & Housing
4. 316 Stainless Steel Pressure Gauges
5. 316 Stainless Steel Low and High Pressure Switches
6. 316 Stainless Steel Back Pressure Regulator
7. Low and High Pressure Safeguards
8. Stainless Steel High Pressure Pumps
9. Pulsation Dampner
10. Pressure Relief Valve
11. Auto Operation with Level Controls
12. Reset Switch to Restart
13. Powder Coated Skid
14. Permeate and Concentrate Flowmeters
15. PLC Controls

OPTIONAL

1. Ultraviolet Sterilizer*
2. Sodium Bisulfite or Chlorine Injection System
3. Differential Pressure Gauge
4. Energy Recovery
5. Turbidity Meter
6. ORP Meter
7. Duplex Stainless Steel High Pressure Pump
8. Multimedia Filters

Energy Recovery (Optional)

1. Energy recovery systems recover energy from the waste stream of seawater reverse osmosis (SWRO) systems at up to 98% efficiency.
2. Energy recovery will normally pay for itself in energy savings and especially make economical sense in areas where electricity costs are high.
3. Main high pressure pump is sized to only the permeate flow rather than the full membrane inlet flow allowing energy savings almost 50% over 20-35% from other manufacturers.

System Working Conditions:
1. Based on 35,000 ppm seawater at 77°F (25 Cent).
2. Recovery in the range of 10-40% depending on the system size.
3. Operating pressure 800-1000 psi (57-71 kg/cm²).
