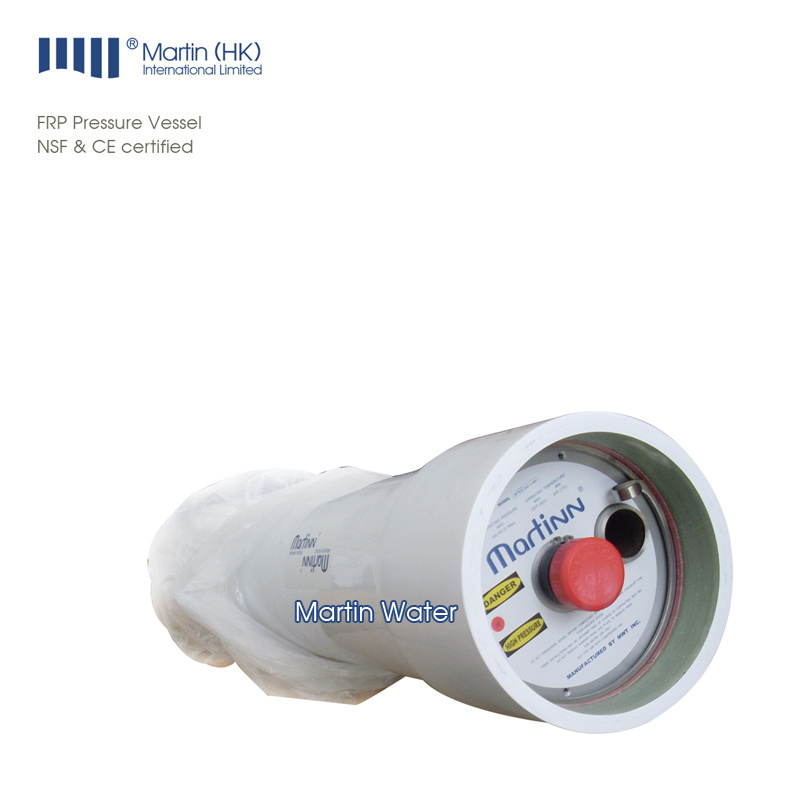

FRP Membrane Pressure Vessel Housing

Usage:
Industrial, Home, Agriculture, Hospital
Material:
FRP
Method:
Combined Treatment
Transport Package:
Carton
Specification:
FRP Membrane Housings
Trademark:
Martinn

Quantity:
Availability:





Inquire Add to Basket

FRP Pressure Vessel FRP Membrane Pressure Vessel Housing Pressure Vessel

Product Description

products name: FRP membrane pressure vessel housing, frp pressure vessel,ro membrane housing.

Martin FRP membrane housings o ffer multiple benefits like minimi z ed leakage with flat sealing of side ports, threaded side port for easy maintenance and replacement, unique head assembly with elimination of potential permeate port leak point and multi-port option even at high pressures of 1000 psi & 1200 psi .

Features
1. l Composite construction which results in superior impact and corrosion resistance.
2. l Professional mirror ID with a precision bore delivers better membrane sealing and ease of membrane
3. loading and unloading.
4. l The Unique quick locking system lets you access membranes in seconds
5. l Multi-porting option allows vessels to be linked together cutting down investment on expensive manifolds.
6. l Full Choice of Membrane Pressure Vessels .
7. l Length from 1 element to 8 elements
8. l Color Option: White/ Blue / Natural
FRP Membrane Pressure Vessel Housing

Product Code	Description	Standard Permeate Port	Standard Feed/ Con. Port
Product Code	Description	Standard Permeate Port	Standard Feed/ Con. Port
MT4E300-1	4", 300PSI, End port	1/2" NPT F	3/4" NPT F
MT4E300-2	4", 300PSI, End port	1/2" NPT F	3/4" NPT F
MT4E300-3	4", 300PSI, End port	1/2" NPT F	3/4" NPT F

MT4E450-1	4", 450PSI, End port	1/2" NPT F	3/4" NPT F
MT4E450-2	4", 450PSI, End port	1/2" NPT F	3/4" NPT F
MT4E450-3	4", 450PSI, End port	1/2" NPT F	3/4" NPT F

MT-8E150-1	8", 150PSI, End port	1" NPT F	1.5" Grooved
MT-8E150-2	8", 150PSI, End port	1" NPT F	1.5" Grooved
MT-8E150-3	8", 150PSI, End port	1" NPT F	1.5" Grooved
MT-8E150-4	8", 150PSI, End port	1" NPT F	1.5" Grooved
MT-8E150-5	8", 150PSI, End port	1" NPT F	1.5" Grooved
MT-8E150-6	8", 150PSI, End port	1" NPT F	1.5" Grooved

MT-8S150-1	8", 150PSI, Side port	1" NPT F	1.5" Grooved
MT-8S150-2	8", 150PSI, Side port	1" NPT F	1.5" Grooved
MT-8S150-3	8", 150PSI, Side port	1" NPT F	1.5" Grooved
MT-8S150-4	8", 150PSI, Side port	1" NPT F	1.5" Grooved
MT-8S150-5	8", 150PSI, Side port	1" NPT F	1.5" Grooved
MT-8S150-6	8", 150PSI, Side port	1" NPT F	1.5" Grooved

MT-8E300-1	8", 300PSI, End port	1" NPT F	1.5" Grooved
MT-8E300-2	8", 300PSI, End port	1" NPT F	1.5" Grooved
MT-8E300-3	8", 300PSI, End port	1" NPT F	1.5" Grooved
MT-8E300-4	8", 300PSI, End port	1" NPT F	1.5" Grooved
MT-8E300-5	8", 300PSI, End port	1" NPT F	1.5" Grooved
MT-8E300-6	8", 300PSI, End port	1" NPT F	1.5" Grooved

MT-8S300-1	8", 300PSI, Side port	1" NPT F	1.5" Grooved
MT-8S300-2	8", 300PSI, Side port	1" NPT F	1.5" Grooved
MT-8S300-3	8", 300PSI, Side port	1" NPT F	1.5" Grooved
MT-8S300-4	8", 300PSI, Side port	1" NPT F	1.5" Grooved
MT-8S300-5	8", 300PSI, Side port	1" NPT F	1.5" Grooved
MT-8S300-6	8", 300PSI, Side port	1" NPT F	1.5" Grooved

Product Code	Description	Standard Permeate Port	Standard Feed/ Con. Port
Product Code	Description	Standard Permeate Port	Standard Feed/ Con. Port
MT-8E450-1	8", 450PSI, End port	1" NPT F	1.5" Grooved
MT-8E450-2	8", 450PSI, End port	1" NPT F	1.5" Grooved
MT-8E450-3	8", 450PSI, End port	1" NPT F	1.5" Grooved
MT-8E450-4	8", 450PSI, End port	1" NPT F	1.5" Grooved
MT-8E450-5	8", 450PSI, End port	1" NPT F	1.5" Grooved
MT-8E450-6	8", 450PSI, End port	1" NPT F	1.5" Grooved

MT-8S450-1	8", 450PSI, Side port	1" NPT F	1.5" Grooved
MT-8S450-2	8", 450PSI, Side port	1" NPT F	1.5" Grooved
MT-8S450-3	8", 450PSI, Side port	1" NPT F	1.5" Grooved
MT-8S450-4	8", 450PSI, Side port	1" NPT F	1.5" Grooved
MT-8S450-5	8", 450PSI, Side port	1" NPT F	1.5" Grooved
MT-8S450-6	8", 450PSI, Side port	1" NPT F	1.5" Grooved

MT-8E600-1	8", 600PSI, End port	1" NPT F	1.5" Grooved
MT-8E600-2	8", 600PSI, End port	1" NPT F	1.5" Grooved
MT-8E600-3	8", 600PSI, End port	1" NPT F	1.5" Grooved
MT-8E600-4	8", 600PSI, End port	1" NPT F	1.5" Grooved
MT-8E600-5	8", 600PSI, End port	1" NPT F	1.5" Grooved
MT-8E600-6	8", 600PSI, End port	1" NPT F	1.5" Grooved

MT-8S600-1	8", 600PSI, Side port	1" NPT F	1.5" Grooved
MT-8S600-2	8", 600PSI, Side port	1" NPT F	1.5" Grooved
MT-8S600-3	8", 600PSI, Side port	1" NPT F	1.5" Grooved
MT-8S600-4	8", 600PSI, Side port	1" NPT F	1.5" Grooved
MT-8S600-5	8", 600PSI, Side port	1" NPT F	1.5" Grooved
MT-8S600-6	8", 600PSI, Side port	1" NPT F	1.5" Grooved

MT-8E1000-1	8", 1000PSI, End port	1" NPT F	1.5" Grooved
MT-8E1000-2	8", 1000PSI, End port	1" NPT F	1.5" Grooved
MT-8E1000-3	8", 1000PSI, End port	1" NPT F	1.5" Grooved
MT-8E1000-4	8", 1000PSI, End port	1" NPT F	1.5" Grooved
MT-8E1000-5	8", 1000PSI, End port	1" NPT F	1.5" Grooved
MT-8E1000-6	8", 1000PSI, End port	1" NPT F	1.5" Grooved

MT-8S1000-1	8", 1000PSI, Side port	1" NPT F	1.5" Grooved
MT-8S1000-2	8", 1000PSI, Side port	1" NPT F	1.5" Grooved
MT-8S1000-3	8", 1000PSI, Side port	1" NPT F	1.5" Grooved
MT-8S1000-4	8", 1000PSI, Side port	1" NPT F	1.5" Grooved
MT-8S1000-5	8", 1000PSI, Side port	1" NPT F	1.5" Grooved
MT-8S1000-6	8", 1000PSI, Side port	1" NPT F	1.5" Grooved
