SS Coupling
You are here: Home » Products » Other Parts & Accessories » SS Coupling

loading

SS Coupling

  • Welding

  • Stainless Steel

  • Carton

  • Ss304

  • Martinn

  • China

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
SS Coupling Pipe Coupling
Product Description
SS Couplings

Coupling Specifications:
Bolts/Nuts- Round head, oval-neck, type carbon steel zinc plated SS304, SS316 bolts and heavy nuts
Coupling- Type SS304, SS316, SS2205, SS2507,
Gaskets- EPDM. Rubber, Suitable for hot and cold water, Not suitable for petroleum service.
Pressure Rating 500 Psi 1150 Psi
Nominal Series Formal Size Formal Size
X Y Z X Y Z
in in in in in in in
mm mm mm mm mm mm mm
3/4 1.85 3.31 1.61 1.93 3.19 1.65
20 47 84 41 49 81 42
1 2.05 3.54 1.61 2.13 3.46 1.65
25 52 90 41 54 88 42
1-1/4 2.40 3.93 1.65 2.36 3.74 1.73
32 61 99.7 42 60 95 44
1-1/2 2.64 4.19 1.65 2.72 4.21 1.73
40 67 106.3 42 69 107 44
2 3.19 4.76 1.65 3.23 4.88 1.73
50 81 121 42 82 124 44
2-1/2 3.86 5.80 1.69 3.94 5.47 1.73
65 98 147.3 43 100 139 44
3 4.37 6.33 1.69 4.45 6.06 1.73
80 111 160.9 43 113 154 44
4 5.43 7.46 1.85 5.28 7.20 1.89
100 138 189.5 47 134 183 48

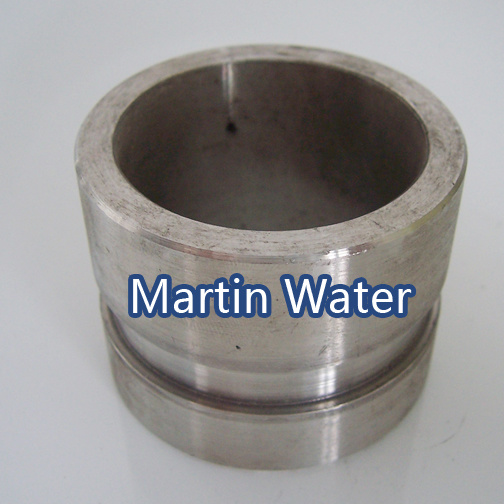

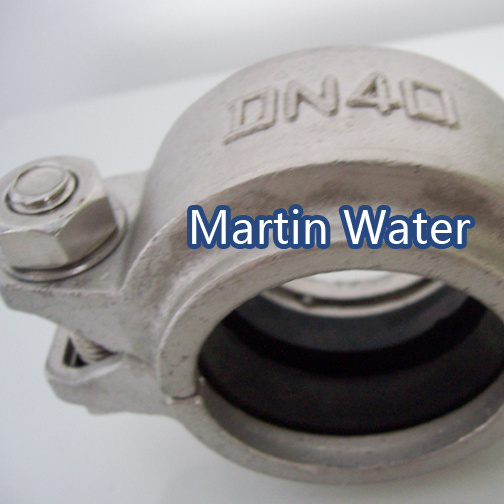

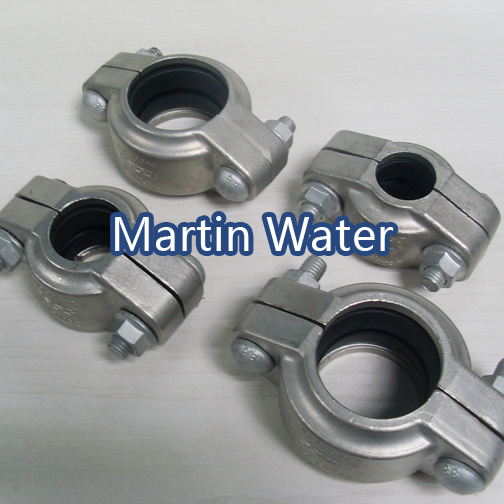

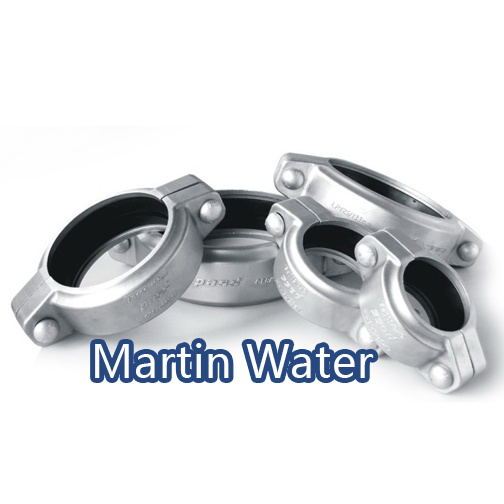

Detailed Pictures
SS Coupling SS Coupling SS Coupling SS Coupling



SS Coupling
SS Coupling
