Pressure Gauge Pressure Gauges with Brass Movement
Product Description

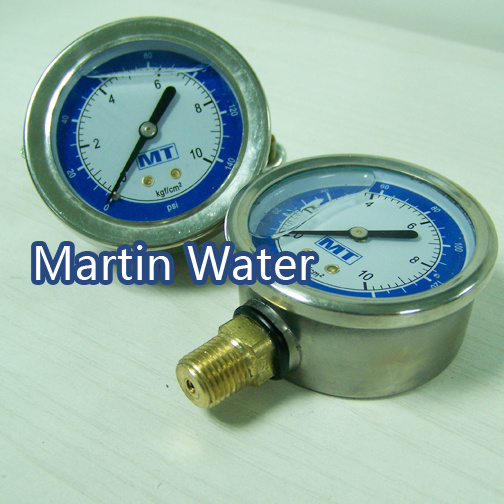

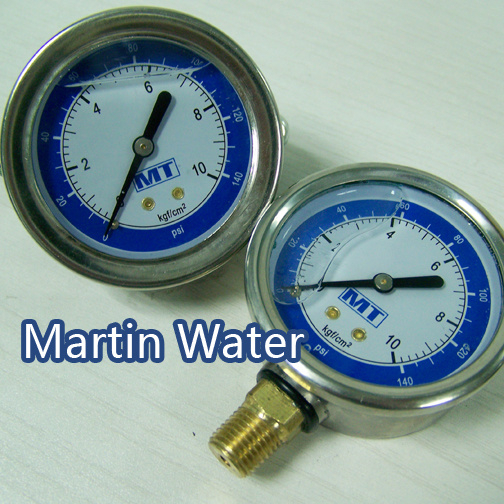

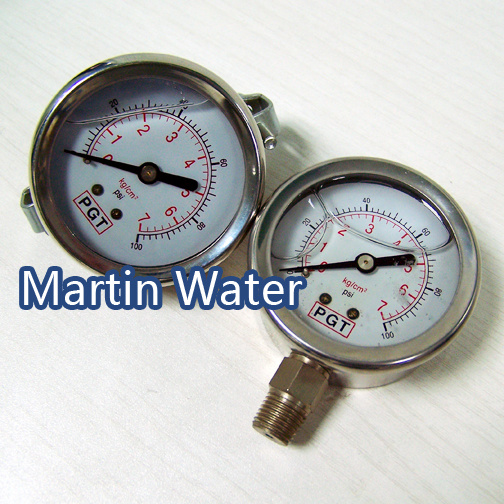

Pressure Gauges with Brass Movement

2.5" Diameter; Acrylic Window
Heavy duty Stainless Steel 304 Case
Movement: Brass; Bourdon tube: Phosphor Bronze
Silicon Oil Filled
PSI/KGF Indicator
Accuracy: ± 2.5%FS
Connection: Brass 1/4" NPT
Armor Class: IP65
Air or water applications
Model KG PSI Type
MT-PRG-BS-100-S 0-7 0-100 Side Mount
MT-PRG-BS-150-S 0-10 0-150 Side Mount
MT-PRG-BS-300-S 0-20 0-300 Side Mount
MT-PRG-BS-450-S 0-30 0-450 Side Mount

Model KG PSI Type
MT-PRG-BS-100-P 0-7 0-100 Panel Mount
MT-PRG-BS-150-P 0-10 0-150 Panel Mount
MT-PRG-BS-300-P 0-20 0-300 Panel Mount
MT-PRG-BS-450-P 0-30 0-450 Panel Mount

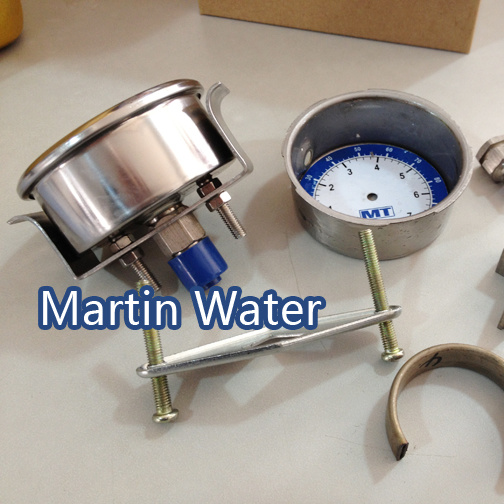

Detailed Pictures
Pressure Gauges with Brass Movement Pressure Gauges with Brass Movement Pressure Gauges with Brass Movement Pressure Gauges with Brass Movement

Pressure Gauges with Brass Movement Pressure Gauges with Brass Movement
