Pressure Gauges (SS304 complete)
You are here: Home » Products » Other Parts & Accessories » Pressure Gauges (SS304 complete)

loading

Pressure Gauges (SS304 complete)

  • Industrial

  • Water Treatment

  • Carton

  • China

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Pressure Gauge Pressure Gauges (SS304 complete) Liquid Pressure Gauge
Product Description
Pressure Gauges (SS304 complete ):

2.5" Diameter; Acrylic Window
Heavy duty Stainless Steel 304 Case
Movement: SS304; Bourdon tube: SS304
Silicon Oil Filled
PSI/KGF Indicator
Accuracy: ± 2.5%FS
Connection: SS304 1/4" NPT
Armor Class: IP65
Air or water applications
Model KG PSI Type
MT-PRG-100-S 0-7 0-100 Side Mount
MT-PRG-150-S 0-10 0-150 Side Mount
MT-PRG-300-S 0-20 0-300 Side Mount
MT-PRG-450-S 0-30 0-450 Side Mount
Model KG PSI Type
MT-PRG-100-P 0-7 0-100 Panel Mount
MT-PRG-150-P 0-10 0-150 Panel Mount
MT-PRG-300-P 0-20 0-300 Panel Mount
MT-PRG-450-P 0-30 0-450 Panel Mount

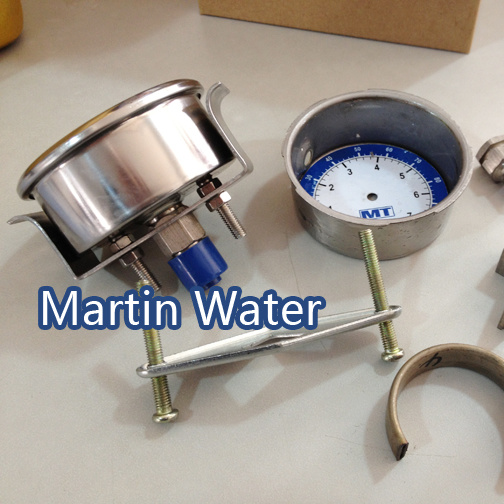

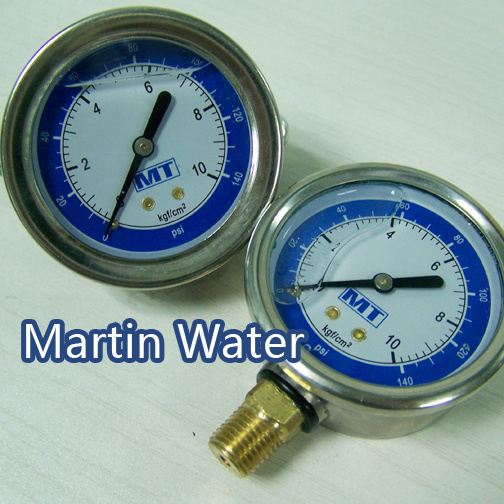

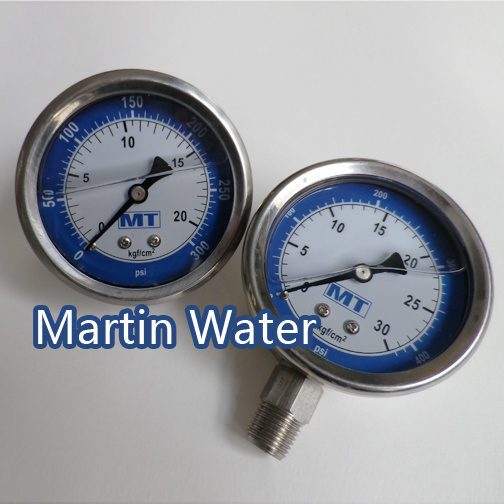

Detailed Pictures
Pressure Gauges (SS304 complete)
Pressure Gauges (SS304 complete) Pressure Gauges (SS304 complete) Pressure Gauges (SS304 complete)



Pressure Gauges (SS304 complete) Pressure Gauges (SS304 complete)
