Pressure Gauge Oil Pressure Gauge
Product Description
Pressure Gauge
Side mount and panel amount avaialble
Heavy duty Stainless Steel 304 Case and body
2.5" Diameter
Movement: SS304; Bourdon tube: SS304
Silicon Oil Filled
PSI/KG Indicator
Resolution ± 15%
Connection: SS304 1/4" NPT
Armor Class: IP65
Air or water applications
Model KG PSI Type Model KG PSI Type
MT-PRG-100-S 0-7 0-100 Side Mount MT-PRG-100-P 0-7 0-100 Panel Mount
MT-PRG-140-S 0-10 0-140 Side Mount MT-PRG-140-P 0-10 0-140 Panel Mount
MT-PRG-200-S 0-15 0-200 Side Mount MT-PRG-200-P 0-15 0-200 Panel Mount
MT-PRG-300-S 0-20 0-300 Side Mount MT-PRG-300-P 0-20 0-300 Panel Mount
MT-PRG-400-S 0-30 0-400 Side Mount MT-PRG-400-P 0-30 0-400 Panel Mount

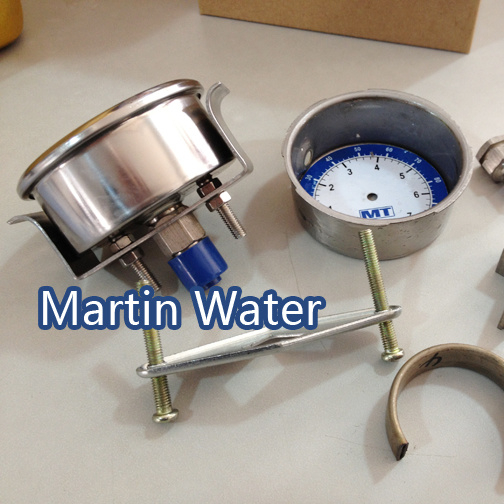

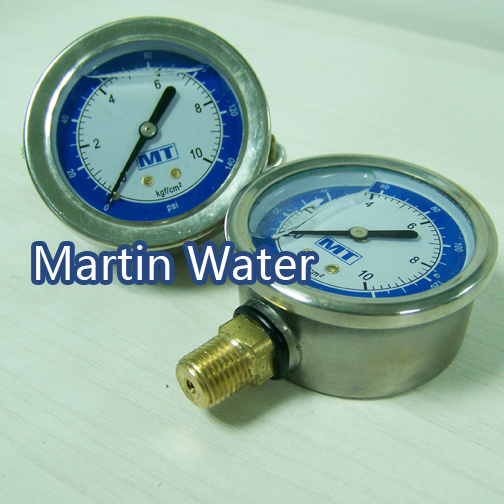

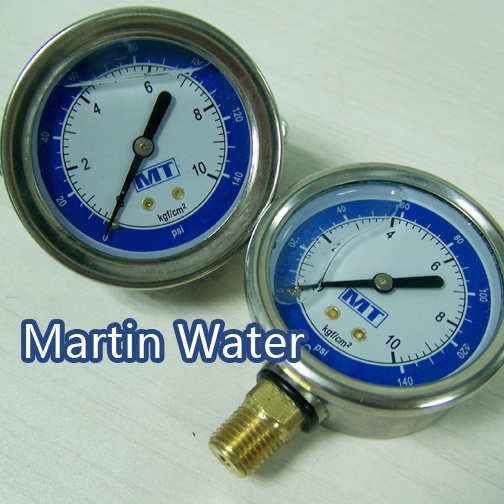

Detailed Pictures
Pressure Gauge
Pressure Gauge Pressure Gauge Pressure Gauge


Pressure Gauge Pressure Gauge
