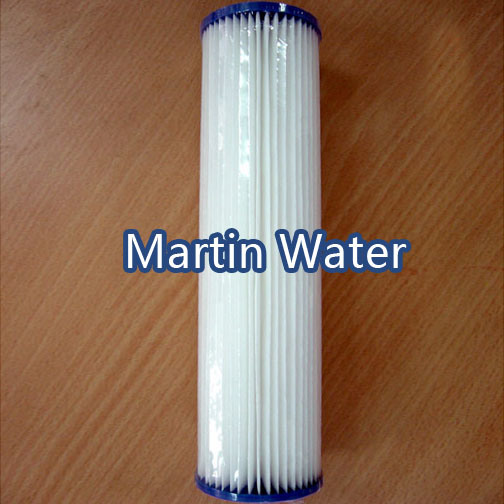

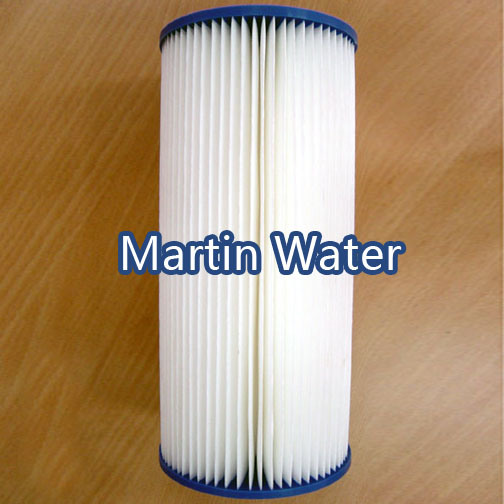

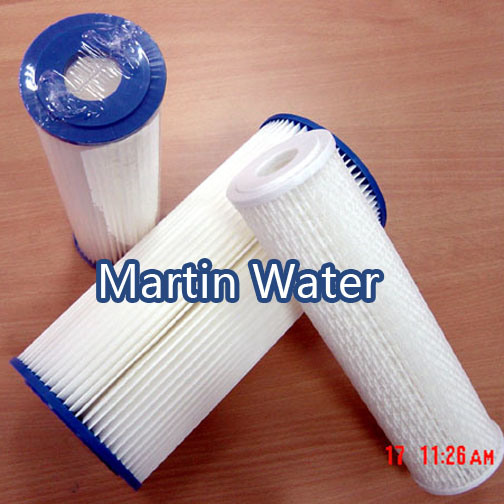

Standard Pleated Filter Cartridge:
Standard filter cartridge are made of pleated polyester filtre media for low pressure drop, increased surface area and longer life.
Feature:
Pleated design increased surface area and contaminant removal
Longer filtration runs for fewer change-out and less maintenance
Low pressure drop
Designed for general water filtration purpose
Specification:
Filter media: Polyester
Outside diameter: 2-1/4", 2-3/4"
Inner diameter: 1-1/16"
Length: 5", 10", 20", 30", 40"
Centre Core: PP
Micron rating: 0.5um, 1um, 5um, 10um, 20um, 50um
Temperature range: 140F
Maximum pressure: 40PSI
Flow rate per 10" cartridge: 3-10GPM, depend on micron rating
Detailed Pictures
