Swimming Pool
Sand Filter
CE
Top-Mount
0.13m2 - 1.25m2
8m3/H - 56m3/H
| Quantity: | |
|---|---|

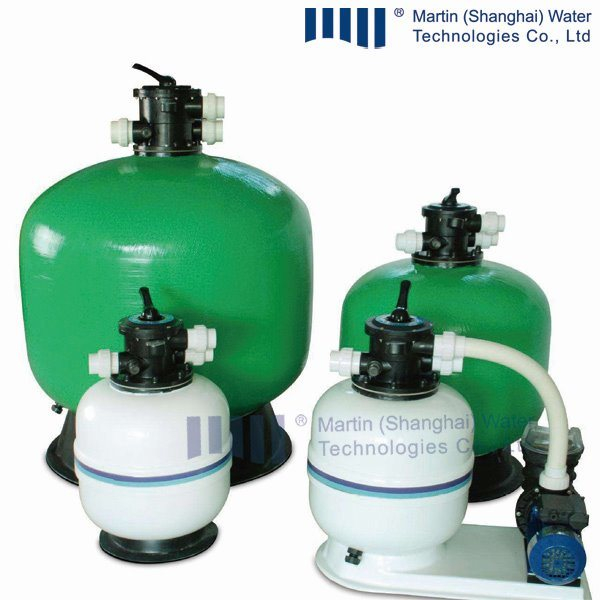

Superior filtration from the inside out.
The Series pool filter with pumpfeatures an integral top diffuser that evenly distributes unfiltered water over the sand media bed in a cascading, umbrella-like pattern. This allows the greatest filtration possible from every square inch of sand. Then the self-cleaning under-drain assembly, with its 360 degree slotted laterals, provides a fast, balanced flow of clear water back to the pool while allowing for more thorough backwashing. Best of all, the full-flow technology reduces your energy costs because the filter operates for shorter periods.
Six-position valve puts you in control.
The patented, multi-port control valve was designed with six pool filter positions. An easy-to-use lever-action handle lets you quickly dial any function.
Long-lasting convenience.
You can easily access the Series pool filter with pump assembly for simple servicing via the unique folding ball joint in the laterals. A corrosion-proof housing protects the filter from severe weather for years to come.

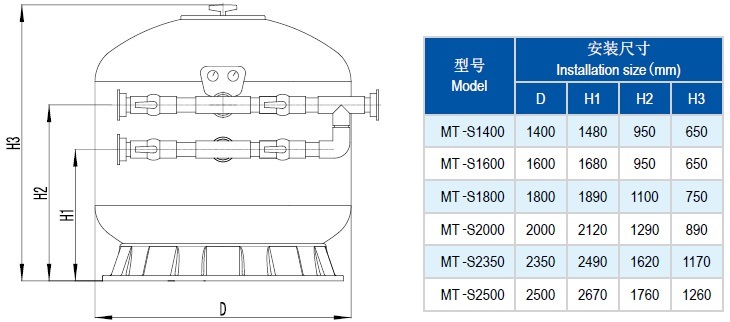

| Model | Tank Diameter | Tank Height | Flow | Filter Area | Connections | Required Sand | Package | (NW) | (GW) | |||||||||
| mm | inches | mm | inches | m3/h | GPM | m2 | sq.ft | mm | inches | kg | lbs | mm | inches | kg | lbs | kg | lbs | |
| MT -S1400 | 1400 | 55.1 | 1480 | 58.3 | 56 | 246 | 1.25 | 12.3 | 90 | 3" | 1460 | 3219 | 1350*1350*1550 | 53*53*61 | 116.2 | 256 | 130.2 | 287 |
| MT -S1600 | 1600 | 63.0 | 1680 | 66.1 | 100 | 440 | 2.01 | 19.7 | 90 | 3" | 2180 | 4807 | 1500*1500*1750 | 59*59*69 | 131.2 | 289 | 154.3 | 340 |
| MT -S1800 | 1800 | 70.9 | 1890 | 74.4 | 125 | 550 | 2.54 | 25.0 | 110 | 4" | 3100 | 6836 | 1950*1950*1960 | 77*77*77 | 253.5 | 559 | 298.8 | 659 |
| MT -S2000 | 2000 | 78.7 | 2120 | 83.5 | 153 | 673 | 3.14 | 30.9 | 110 | 4" | 4250 | 9371 | 2150*2150*2220 | 85*85*87 | 312.2 | 688 | 357.5 | 788 |
| MT -S2350 | 2350 | 92.5 | 2500 | 98.4 | 200 | 880 | 4.30 | 42.2 | 160 | 6" | 6370 | 14046 | 2500*2500*2600 | 98*98*102 | 596.4 | 1315 | 656.4 | 1447 |
| MT-S2500 | 2500 | 98.4 | 2800 | 110.2 | 238 | 1047 | 4.88 | 47.9 | 225 | 8" | 9550 | 21058 | 2650*2650*2750 | 104*104*108 | 710.3 | 1566 | 770.3 | 1699 |

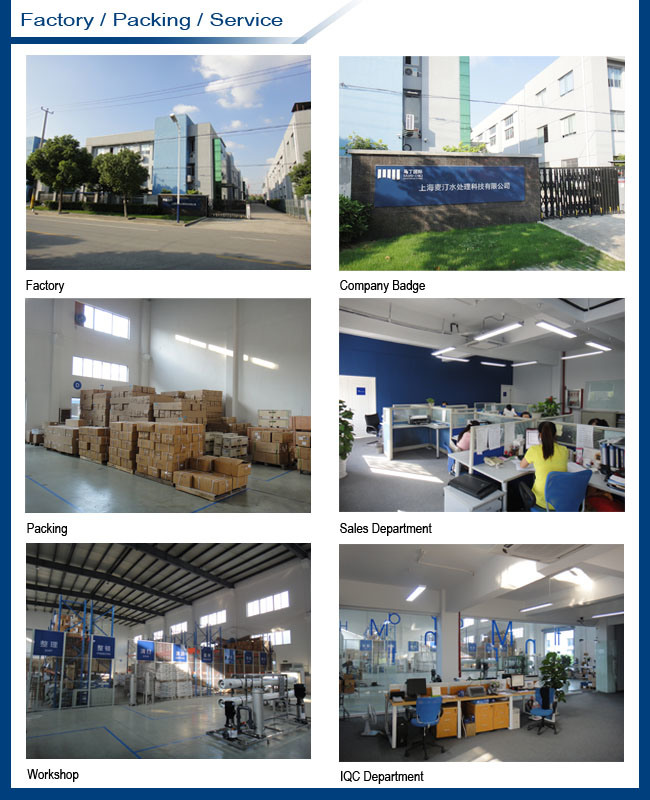

Welcome to visit our factory!
We'd like to take this opportunity to give a brief introduction of our company. Martin (HK) International Limited is a HK company with it's main operation in Shanghai, China, an internationally and technologically integrated manufacturer and distributor company, carrying out activities in the filed of water treatment more than 10 years. The company operates internationally and is constantly developing it's technology, offers clients worldwide the most effective and advanced water treatment solutions. For more detail information, please visit our website for pursuing. (barryma.en.made-in-china.com)
