Membrane Pleated Filter Cartridge (MTMPP-0010-10)

Membrane Pleated Filter Cartridge (MTMPP-0010-10)

Material:
PP
Medium Material:
PP
Filter Bag Filter:
The Filter Type
Usage:
Liquid Filter
Filtration Grade:
ULPA Filter
Filter Bag Environment:
Room Temperature

Quantity:
Availability:





Inquire Add to Basket

Water Filter Cartridge Filter Cartridge Membrane Pleated Filter Cartridge (MTMPP-0010-10)

Product Description

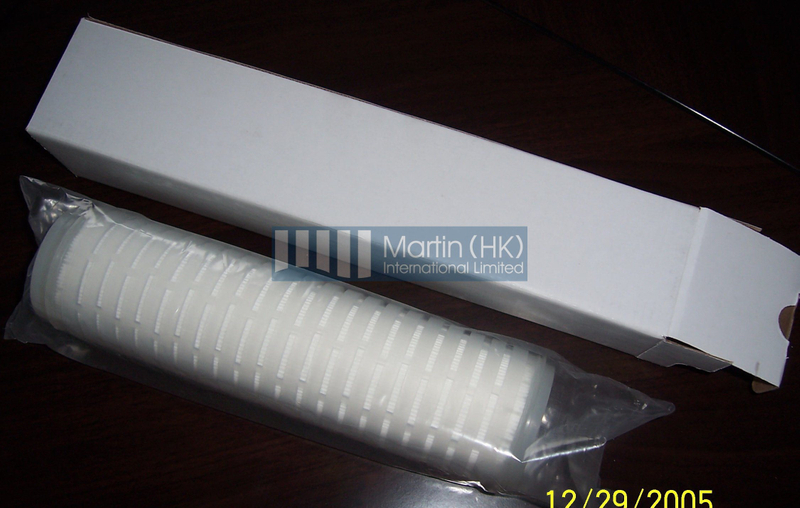

MEMBRANE PLEATED FILTER CARTRIDGE
Martin Polypropylene Membrane Pleated Membrane Filter Cartridge is constructed of micro polypropylene media and nonwoven or silk net support. Adaptors are thermal welded with cartridges without using any glue on it, so there will be no any possibilities to cause the second pollution.

FEATURES:
High surface area design provides superior flow rate and high dirt holding capacity
Low pressure drop & long service life
Using 100% virgin polypropylene media with extensively applications
Wide micron rating range.

APPLICATIONAS:
Food & Beverage, Semiconductor & Pharmaceutics
Solvents, Acid and ink Pre-Filtration for RO & Bottled Water

SPECIFICATIONS:
Filter Media & Support Material: Polypropylene
Outside Diameter: 70mm
Inner Diameter: 28mm
Length: 10", 20", 30", 40"
Micron Rating: 0.1 u m, 0.22 u m, 0.45 u m, 1 u m, 3 u m, 5 u m, 10um, 20um, 50um
Filtration Area: 0.5-0.7m2/ 10 "
End caps: DOE, -222 Flat, -222Fin, -226Flat, -222Fin and other special size
Operating temperature: 80° C, 0. LMpa
Operation Pressure: 0.3Mpa, 50° C Back
Pressure Difference: 0.28Mpa, 25° C
Seals: EPDM, EPR, Silicone, Viton and Teflon

Product Code	Micron Rating	LENGTH	NO. CASE	End Cap
MTMPP-0010-10	0.1	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0022-10	0.22	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0045-10	0.45	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-01-10	1	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-05-10	5	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-10-10	10	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-20-10	20	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-50-10	50	10"	40	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0010-20	0.1	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0022-20	0.22	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0045-200	0.45	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-01-20	1	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-05-20	5	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-10-20	10	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-20-20	20	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-50-20	50	20"	20	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0010-30	0.1	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0022-30	0.22	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0045-30	0.45	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-01-30	1	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-05-30	5	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-10-30	10	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-20-30	20	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-50-30	50	30"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0010-40	0.1	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0022-40	0.22	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-0045-40	0.45	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-01-40	1	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-05-40	5	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-10-40	10	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-20-40	20	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
MTMPP-50-40	50	40"	15	DOE,-222Flat,-222Fin,-226Flat,-226Fin and other special sizes
