Injector Venturi
Product Description
If water is pressed through a venturi, the speed of the water increases, developing at the same time a low pressure. This low pressure can be used for producing vacuum, but also for mixing in liquids and gasses in the main-stream.
Product No Size (NPT) Material Water Flow
VTR-15-GS 1/5" PVDF 0.2M³/H
VTR-14-GS 1/4" PVDF 0.5M³/H
VTR-34-GS 3/4" PVDF 1-2 M³/H
VTR-100-GS 1" PVDF 5M³/H
VTR-150-GS 1-1/2" PVDF 15-20M³/H
VTR-200-GS 2" PVDF 35-40M³/H


Detailed Pictures

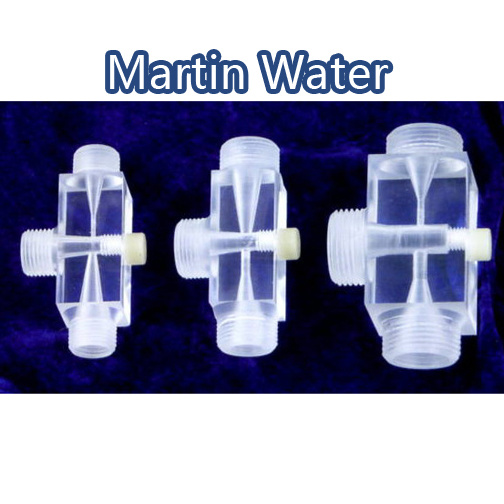

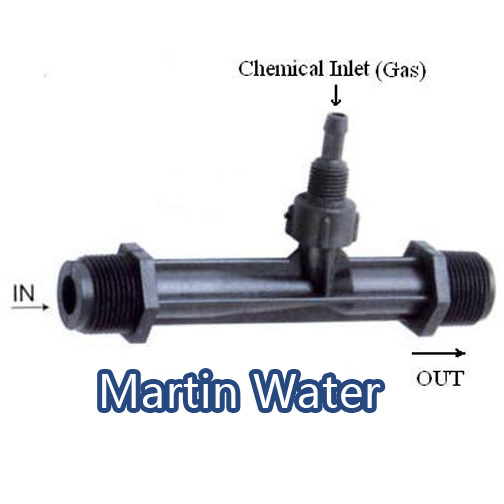

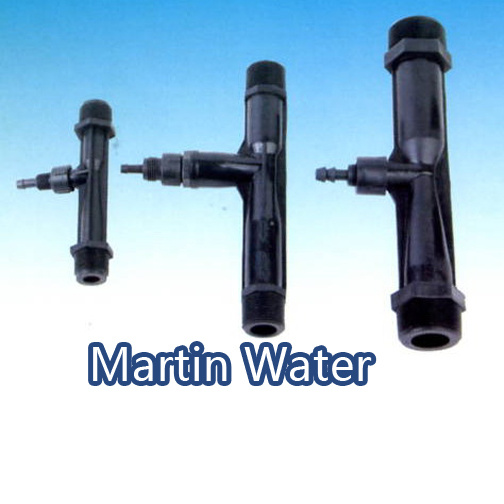

Injector Injector Injector Injector

Injector Injector
